I'm going to use this thread to document what I do with this setup.
will have the car out actually driving this weekend and some numbers soon after that
I will dyno the car in different stages as I will be needing to upgrade my fuel system a little more over the next week or 2
but anyway on to the good stuff.

First off, this was my first time installing a turbo kit on this car (last 3 setups were home built with random parts I scored deals on) let me tell you how much easier and nicer it came out.

motor:
2.0 lsj 10:1 comp diamond pistons
some kind of sleeves designed for diesel pulling motors
4340 rods stock crank
arp head bolts, stock head gasket
ZZP st 2 s/c cams (originally was doing an m62 nitrous build, but you know)
exedy hyper single clutch
aem 320lph e85 pump
79 lb racetronix injectors (need some 1600's)
e85 is the fuel of choice

s256 turbo (will run it til I run out of fuel for now)
meth injection
and a 100 shot on top since this turbo is a little small

on to the photo's, please I know my car is dirty and looks terrible, I don't care about appearence it's how it performs is what matters

I will be updating more after I get it out and tuned this weekend so keep an eye out

onto the pictures

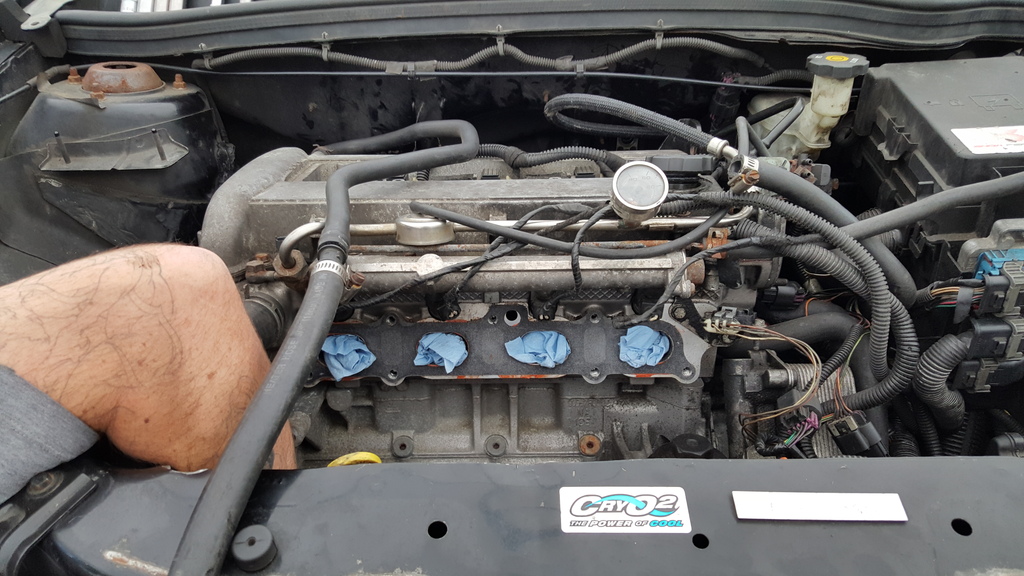

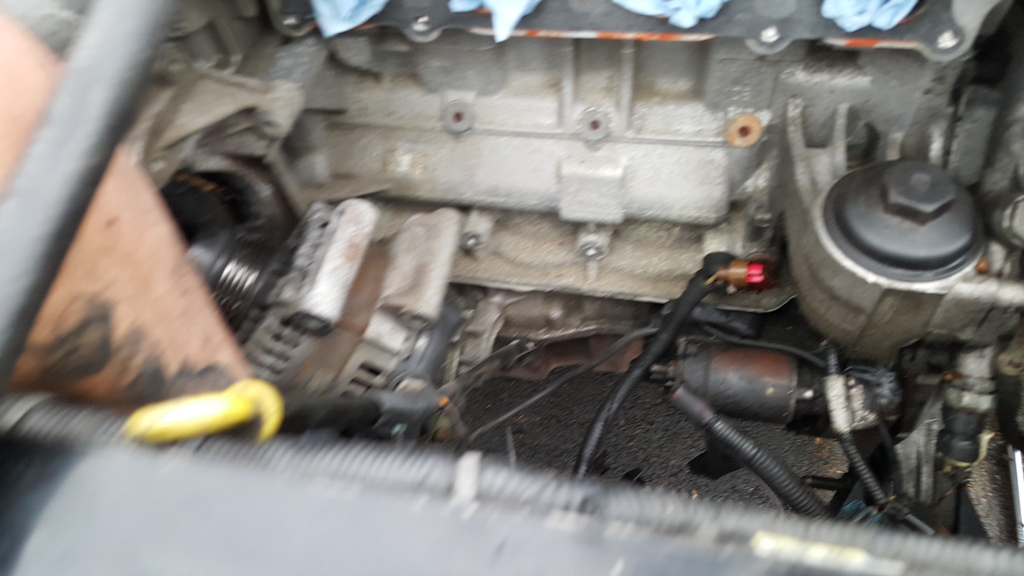

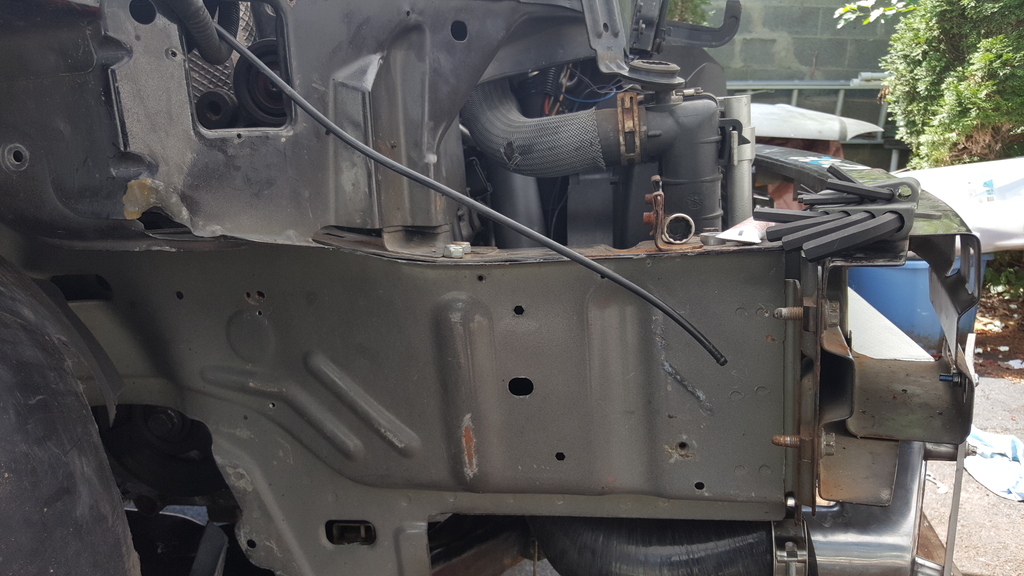

the tear down

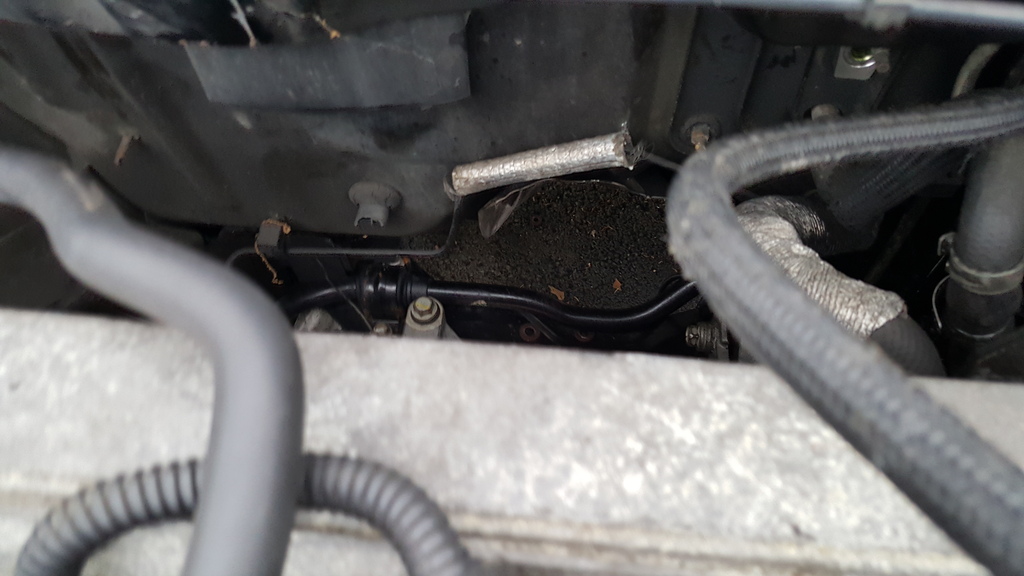

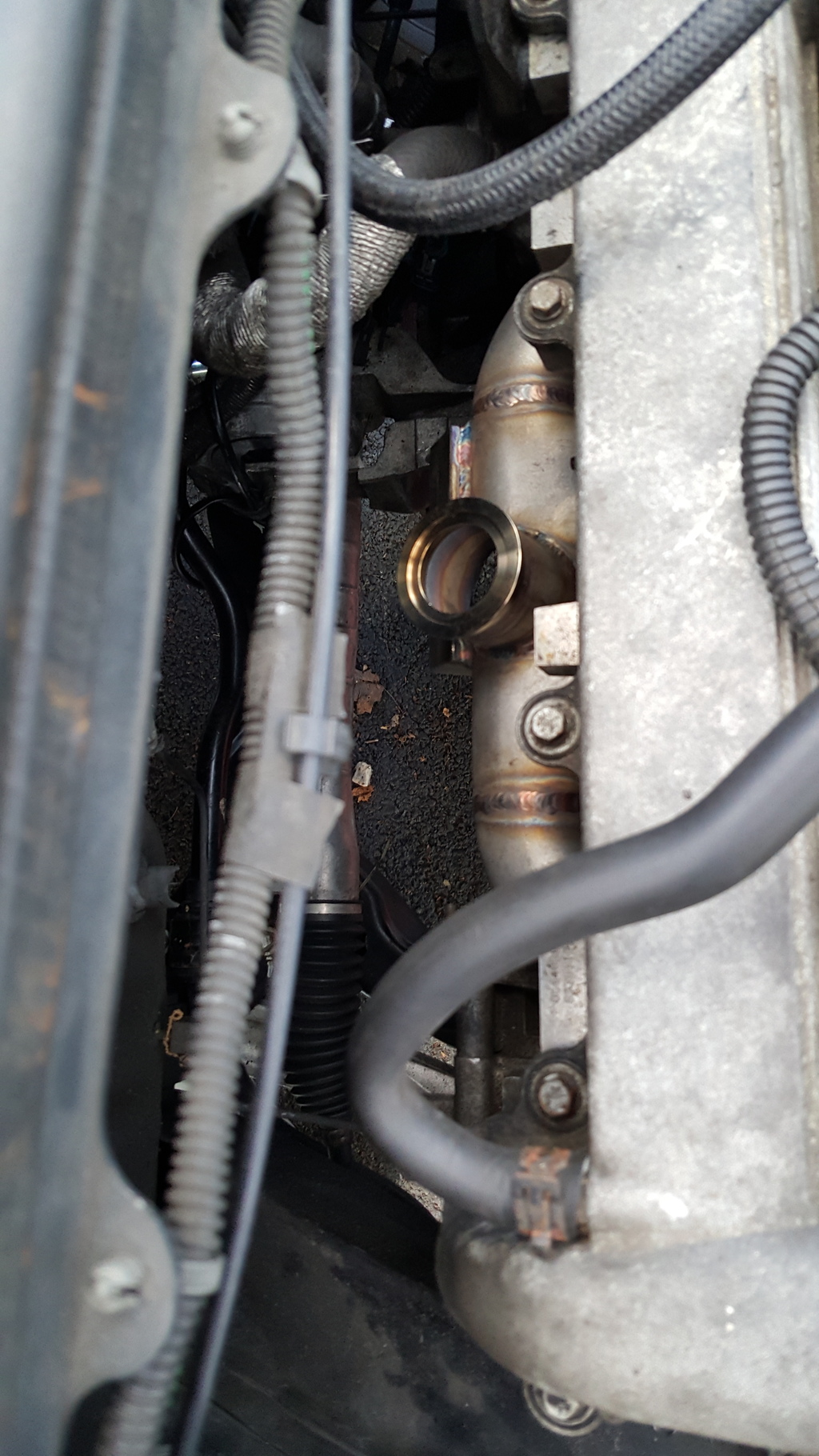

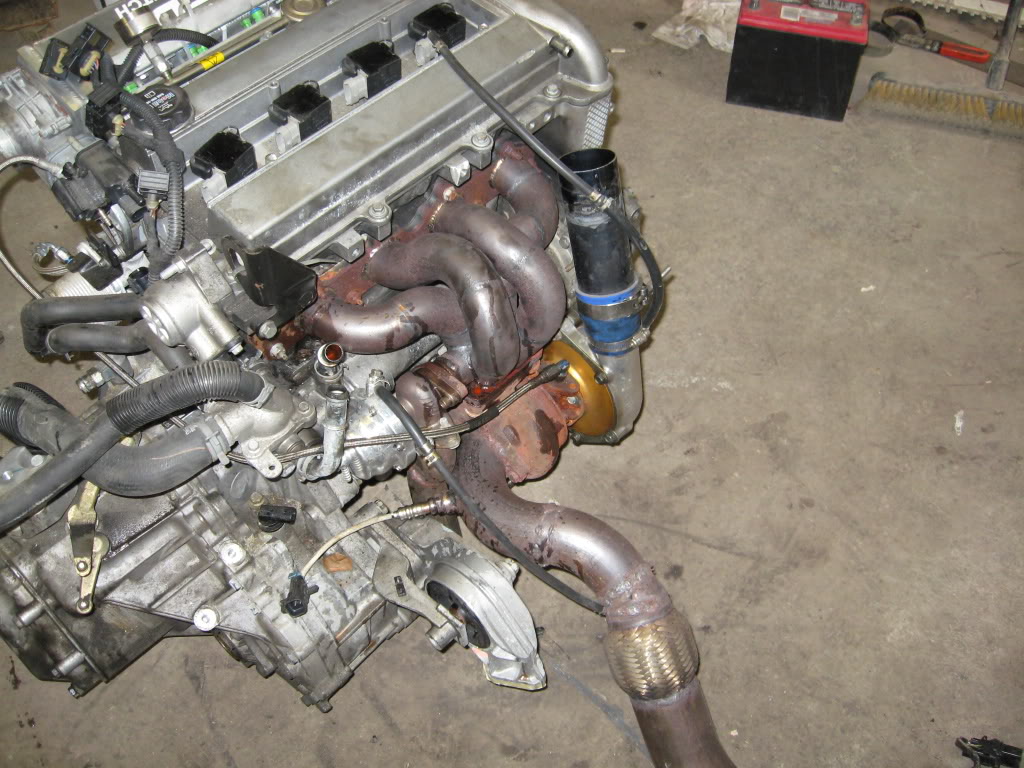

turbo mani is in



oil feed setup is great, much better then the way we used to do it back in the day
nice tial wastegate

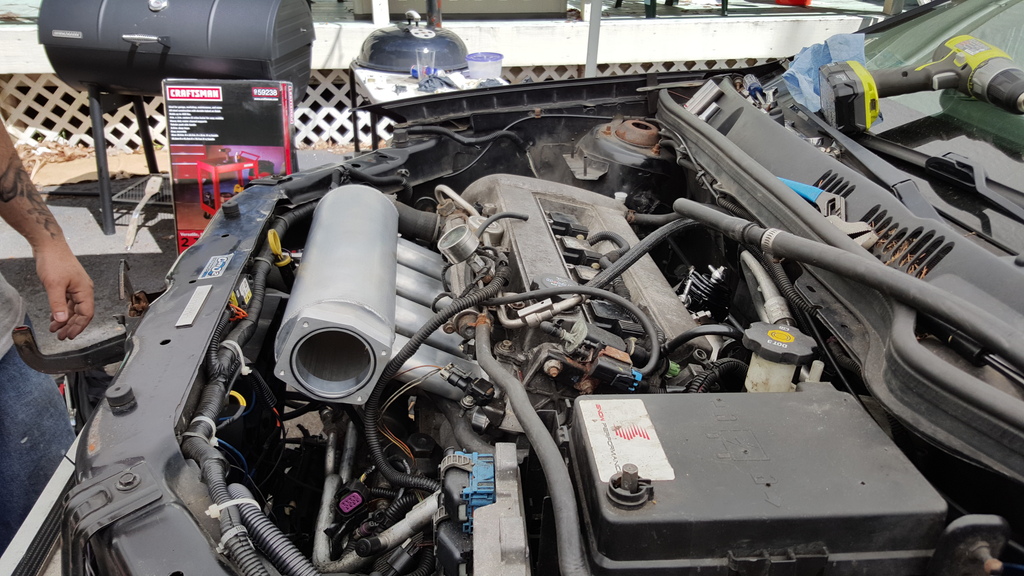

the insane intake manifold



charge pipes a goin in, nice to have an actual intake this time, always ran a screen on the old setups

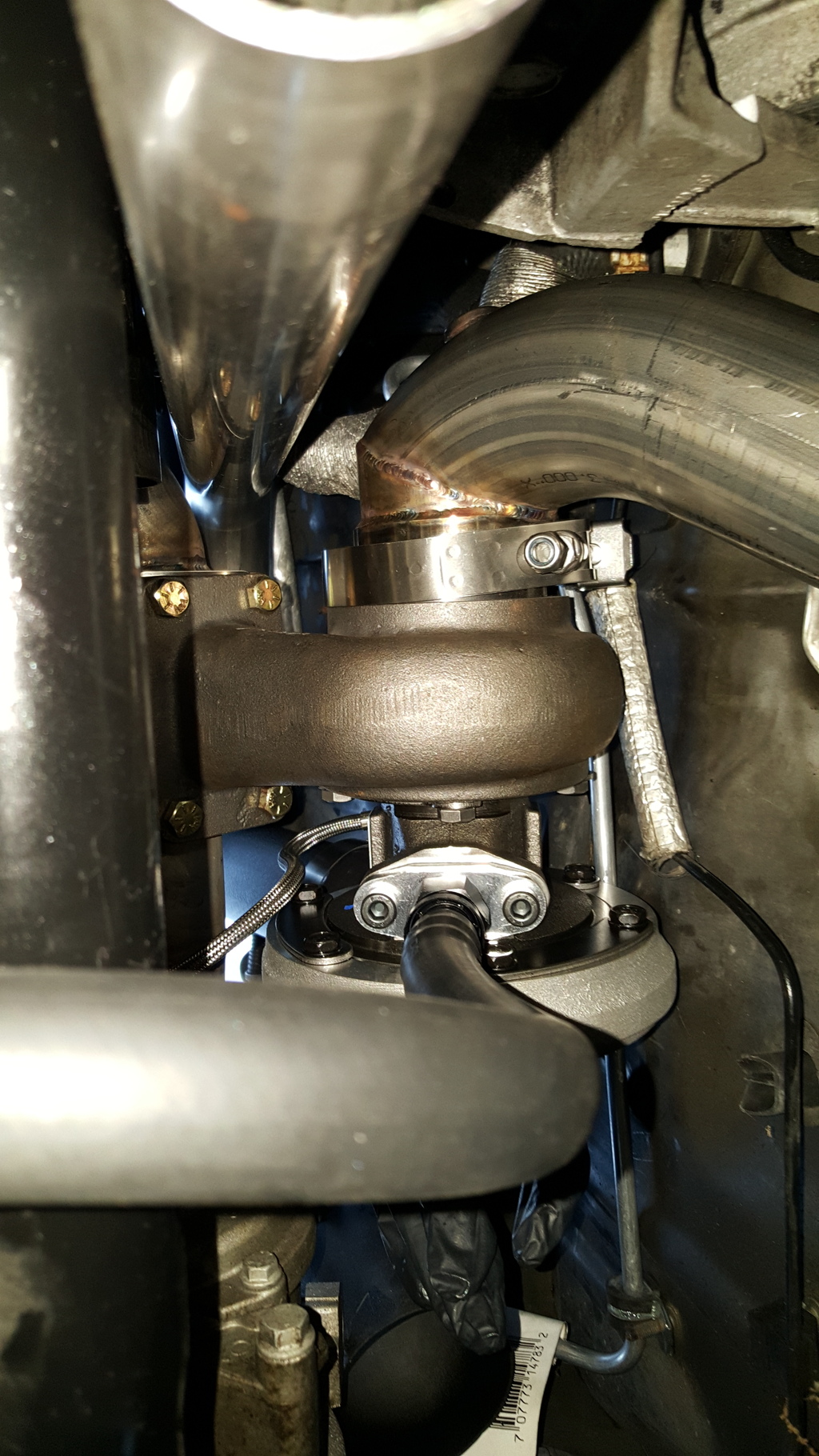

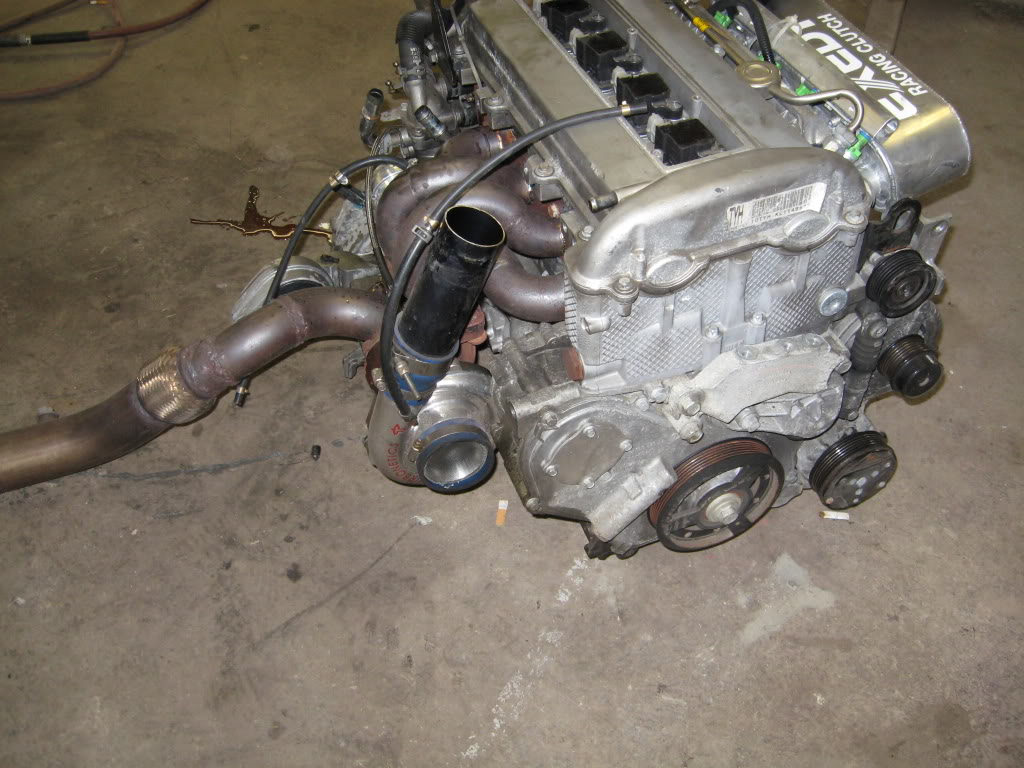

oil return line in and wastegate dump

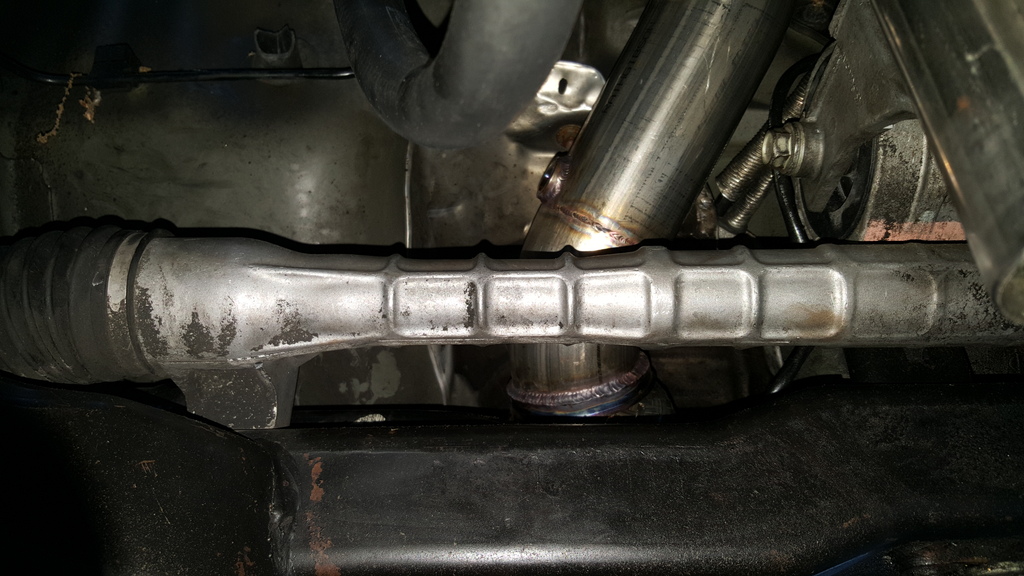

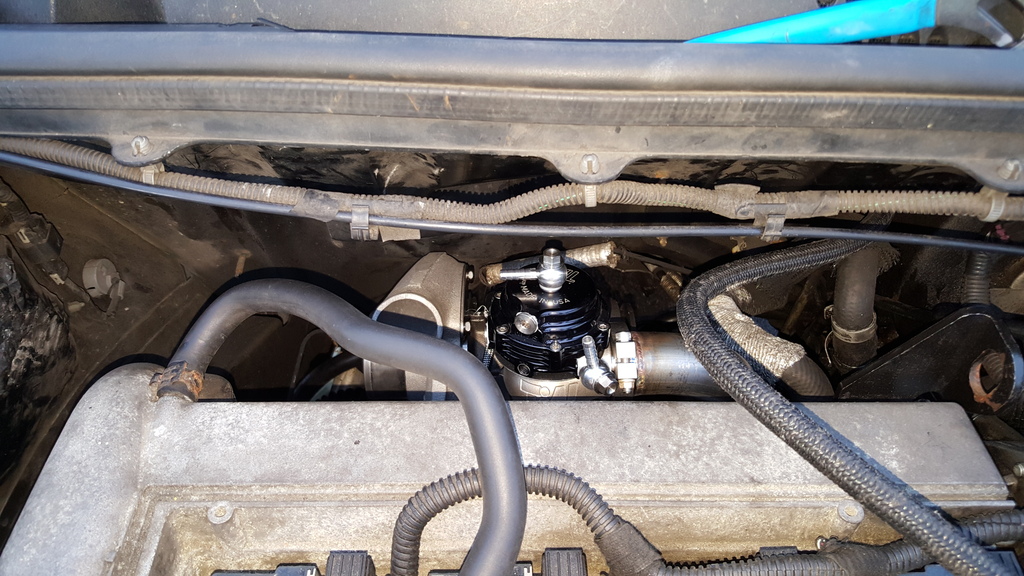

plenty of clearance around the downpipe

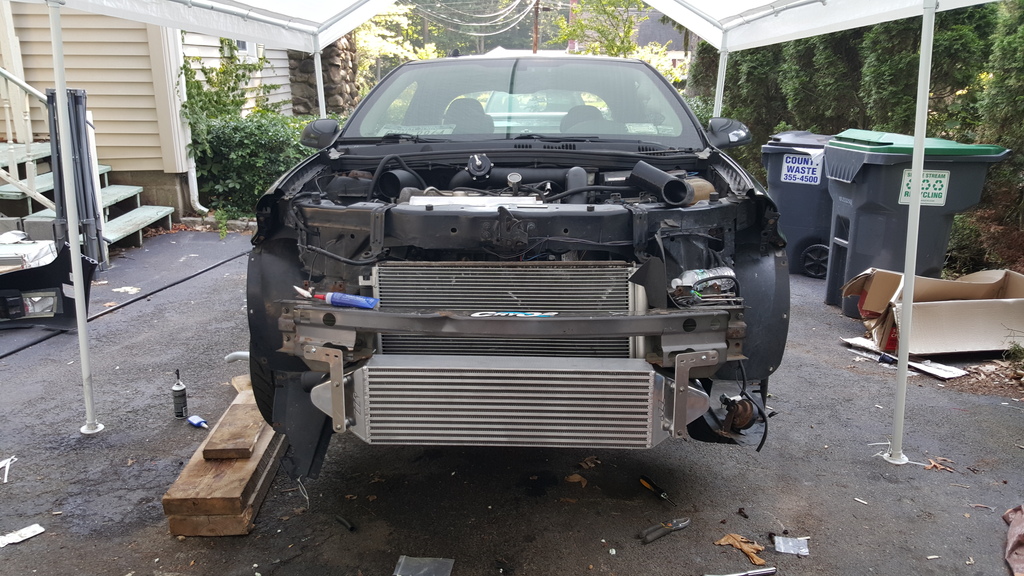

zzp fmic for now (ottp ones weren't in at the time of ordering)


big ol air filter

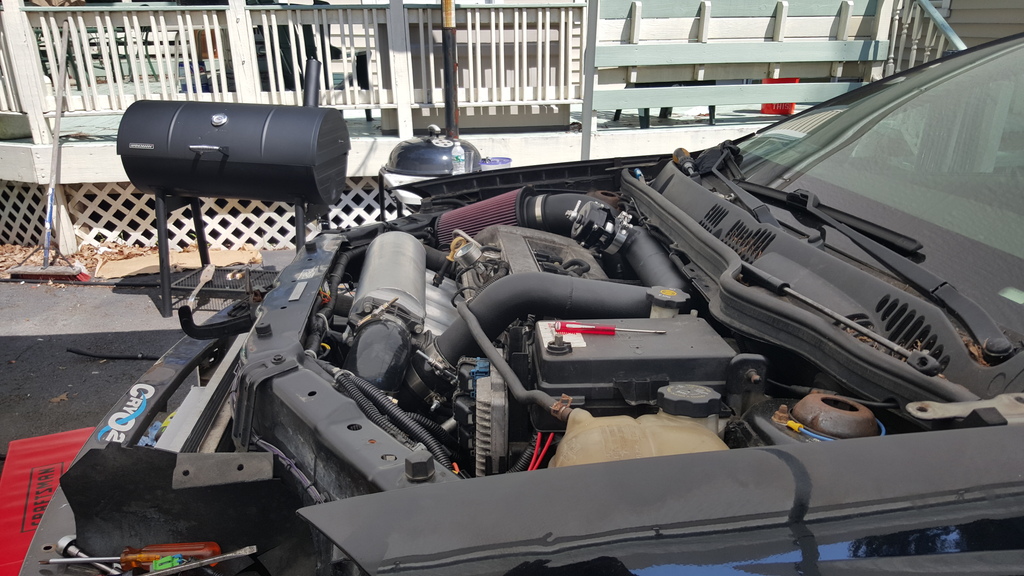

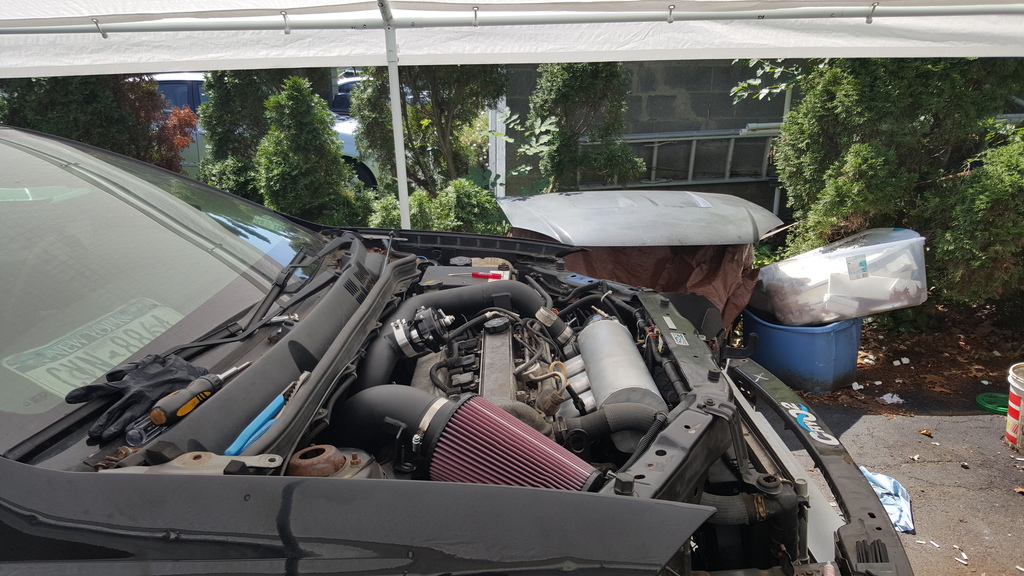

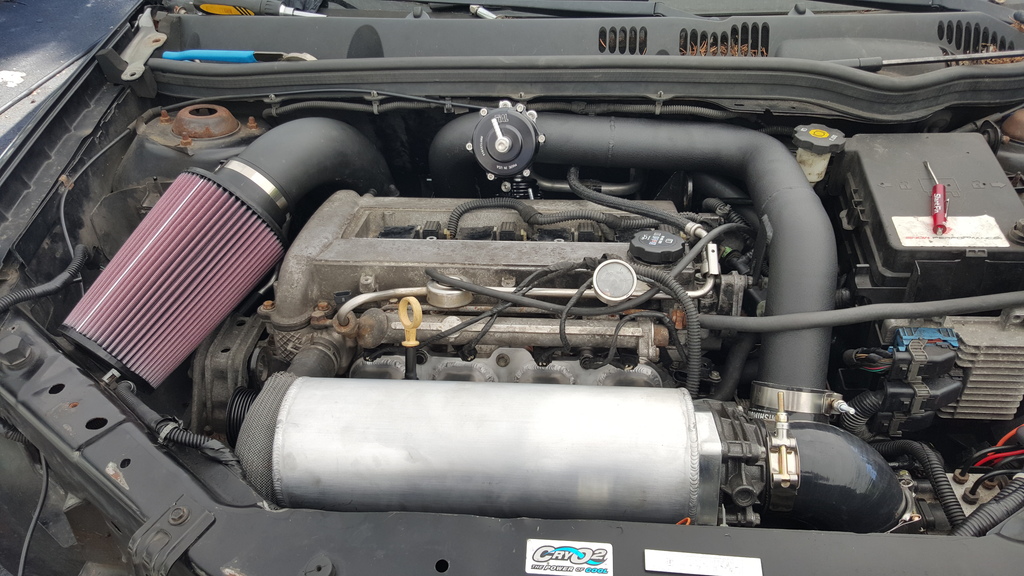

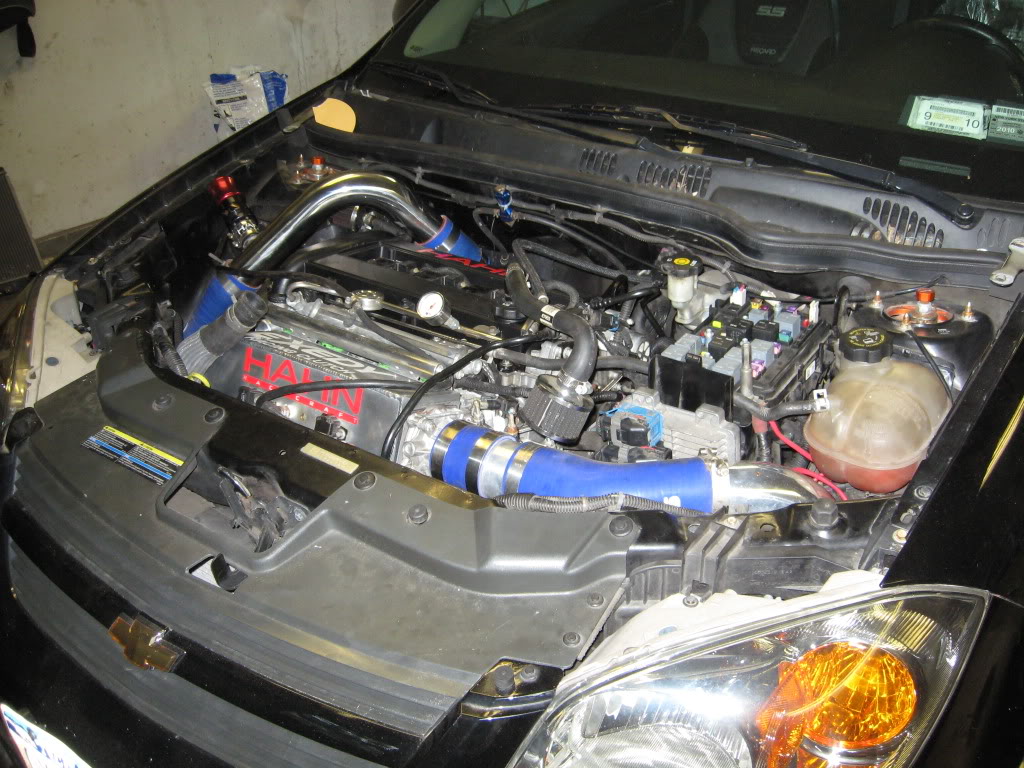

rest of charge pipes in, very clean setup

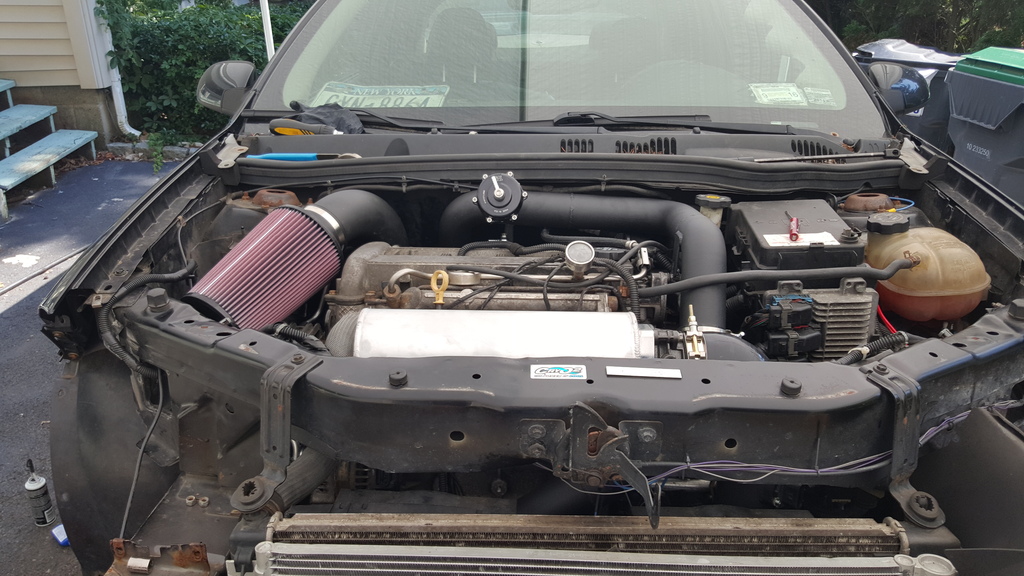

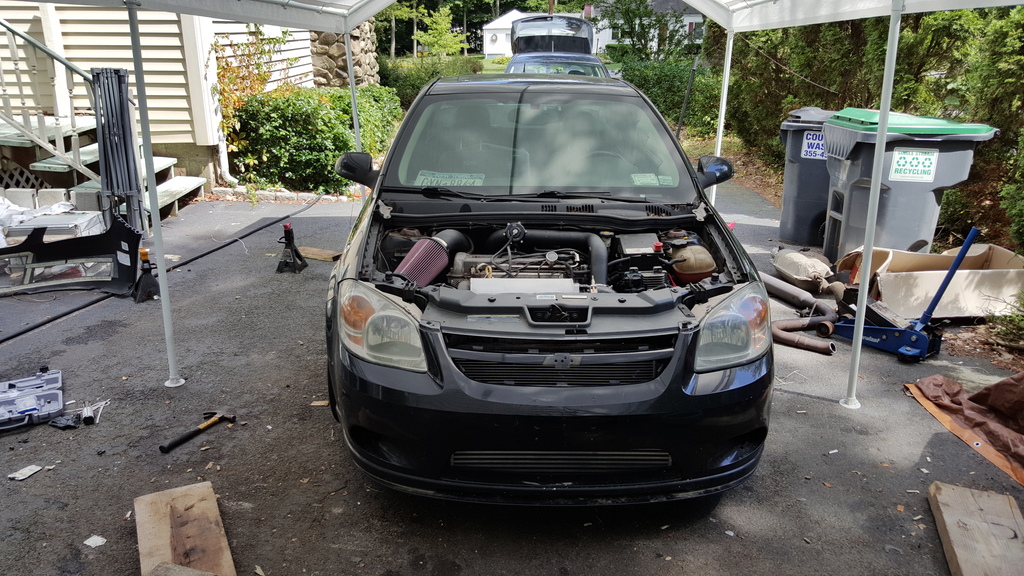

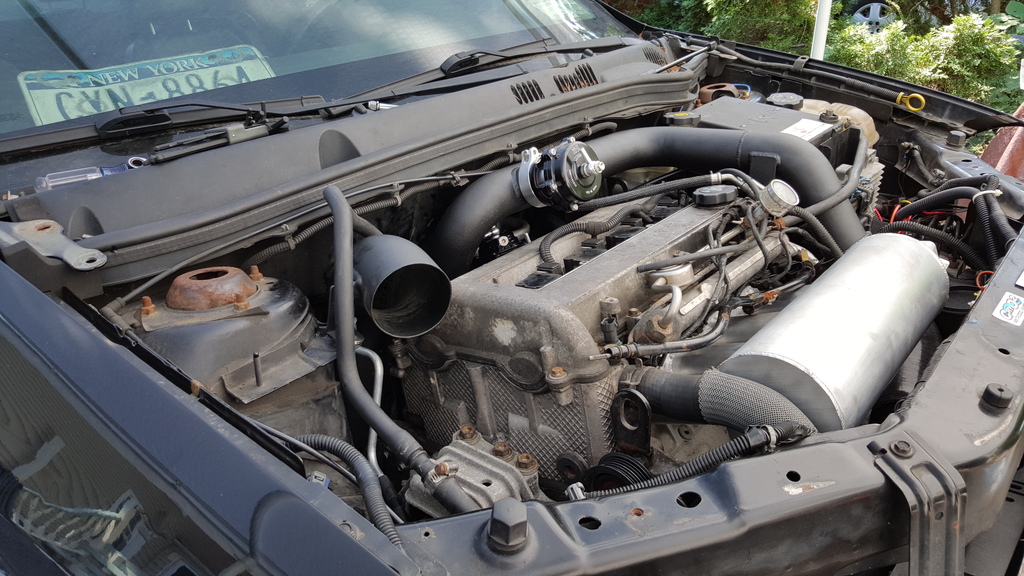

and the finished product



and a quick idle vid with open downpipe


any install questions feel free to post up and I'd be happy to answer ya.

06blackg85ss

iTrader: (1)

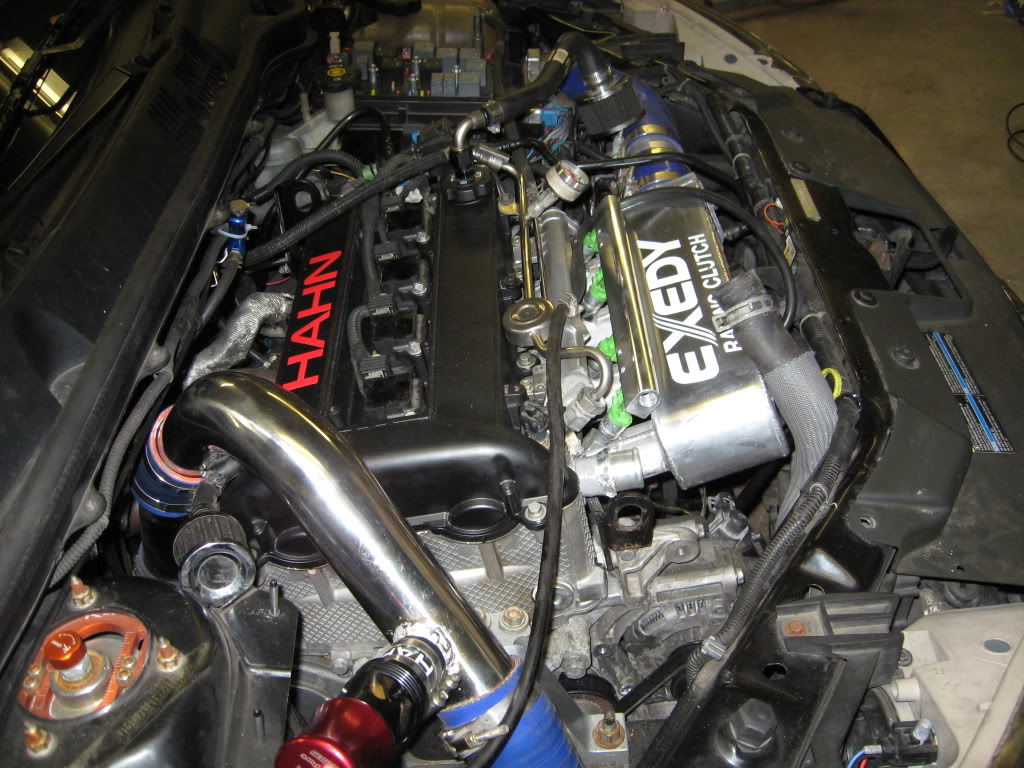

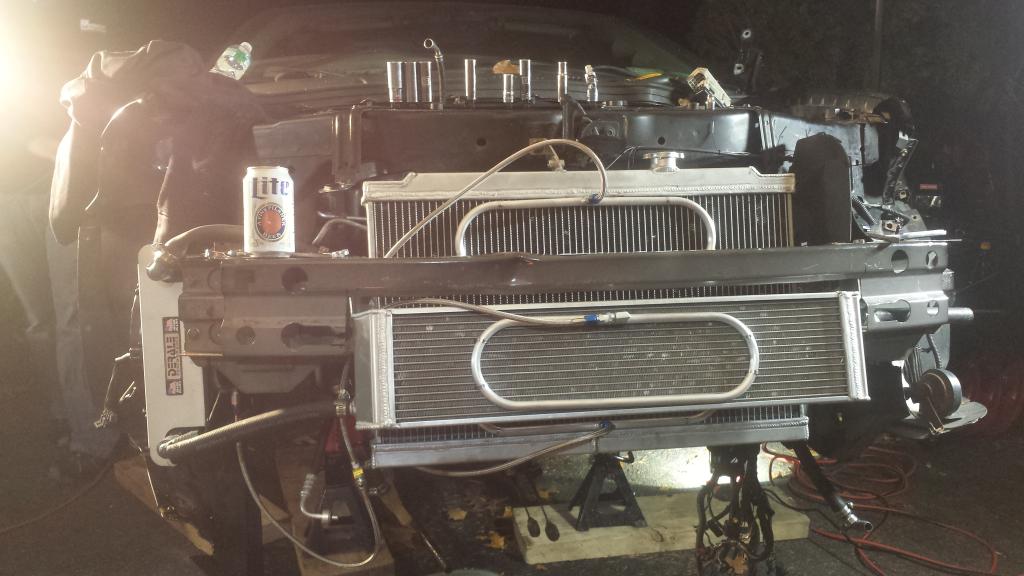

some pics of the older setups just to give you and idea


tiny stock lsj brakes

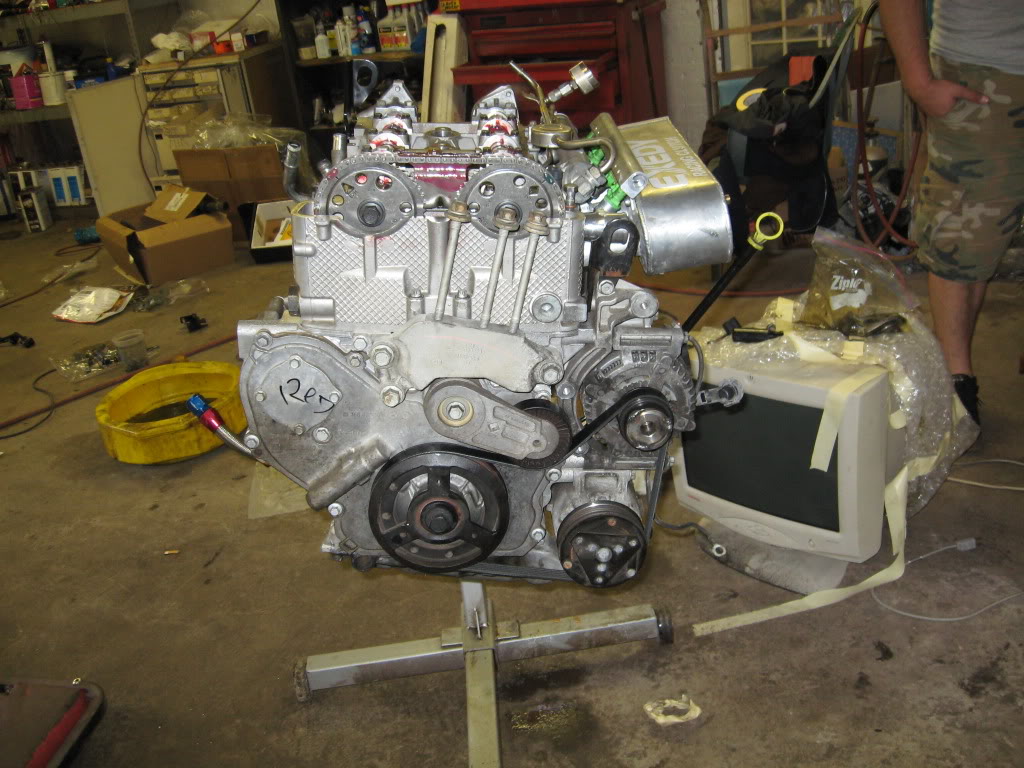

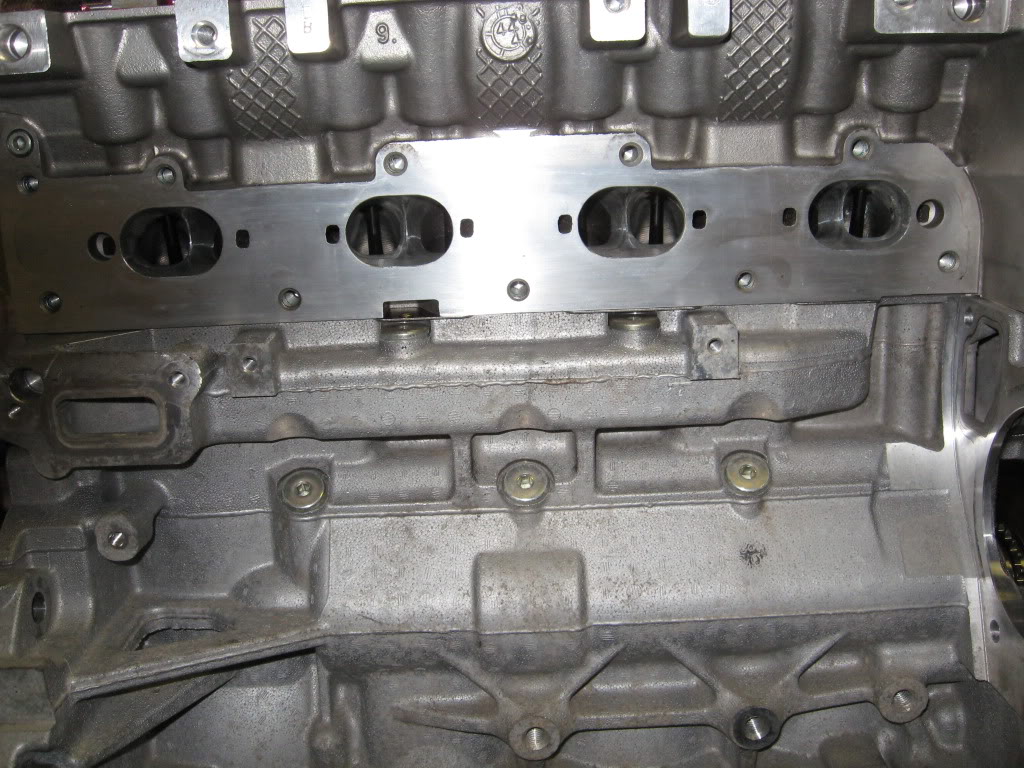

the old motor that I killed


ah my old m2 race head, now on advise's car

old vulcan turbo mani
