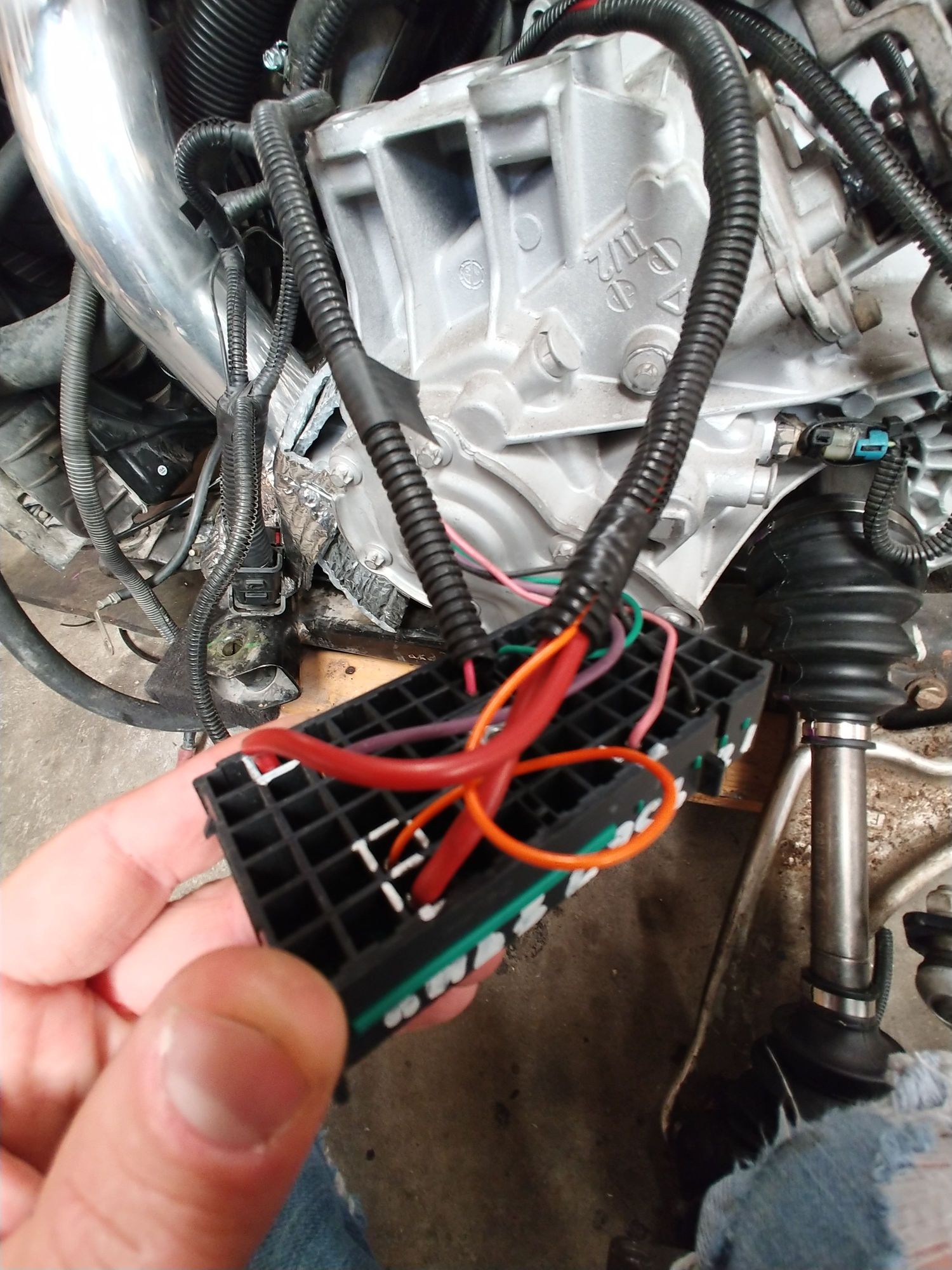

Thanks to Kolt I am able to utilize the stock fuse box to run fuse/relay for the cooling fan and the main EFI relay which powers the coils, injectors, widband sensor, and cam/crank hall effect sensor. Here you can see power wires and lowside relay trigger for EFI relay which is the old "Fan 1" relay.
