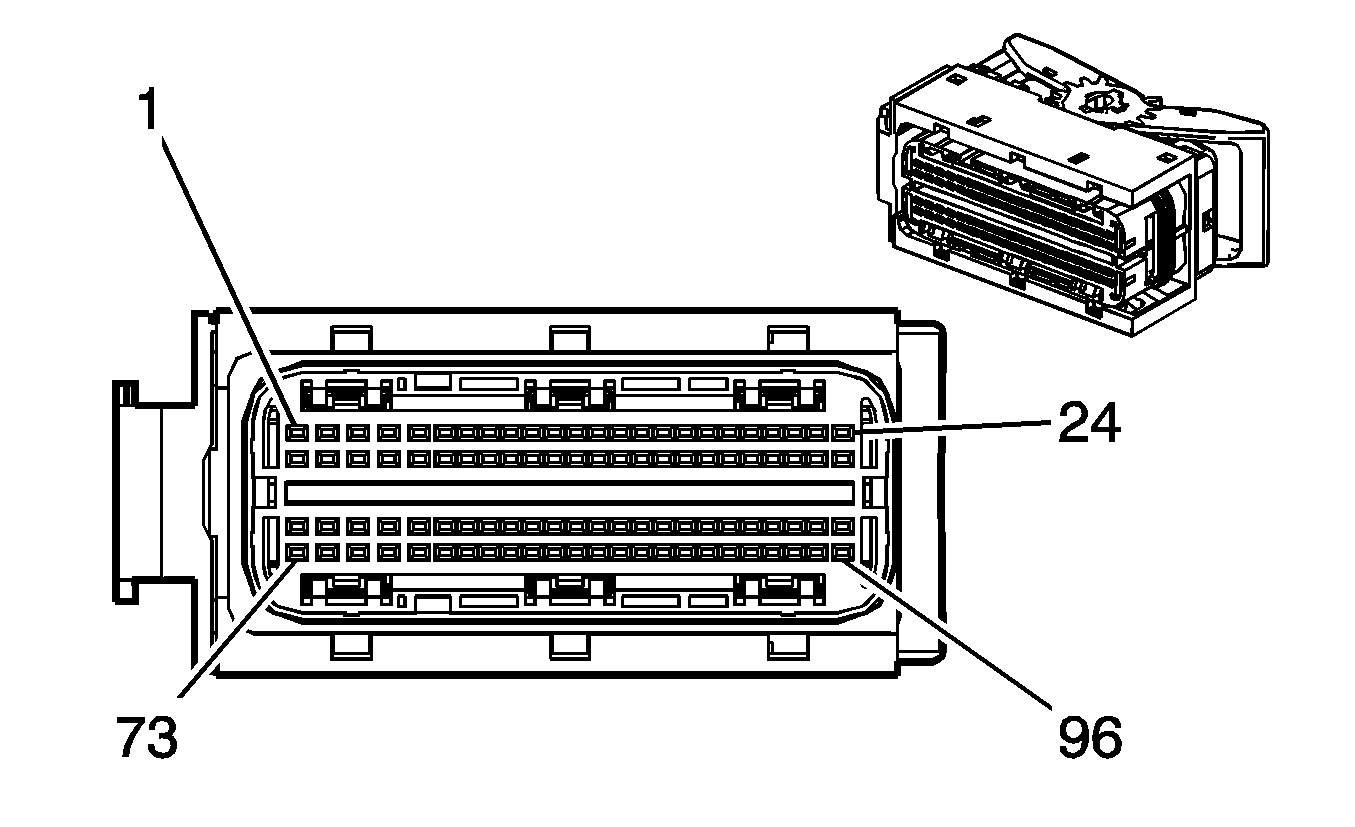

| Connector 1: | Engine Control Module (ECM) C1 |

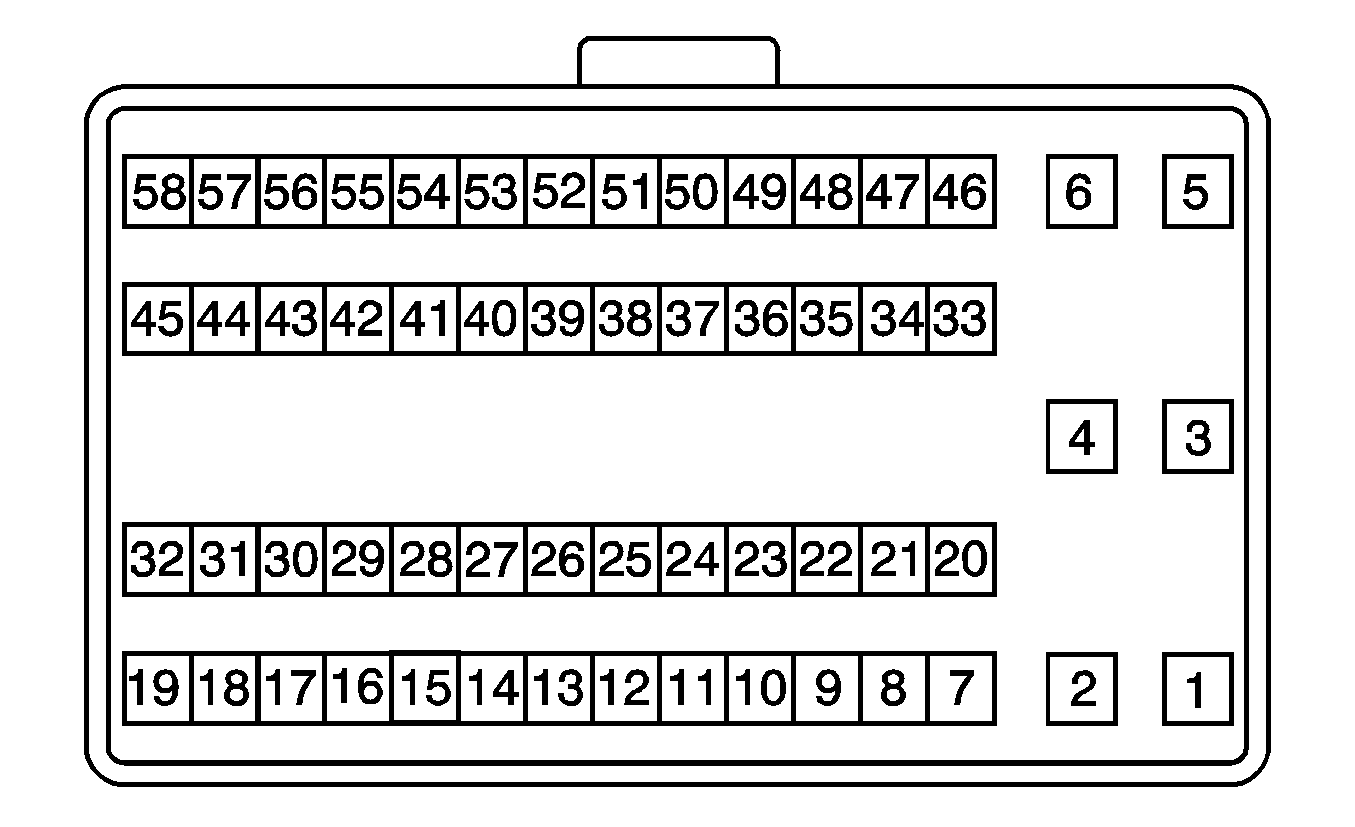

| Connector 2: | Engine Control Module (ECM) C2 |
Connector Part Information
|
Terminal Part Information
|
|
Pin |
Wire Color |
Circuit No. |
Function |
|---|---|---|---|
|
1 |
L-GN |
5282 |
Camshaft Phaser Exhaust Solenoid Control |
|
2 |
PU |
5284 |
Camshaft Phaser Intake Soleniod Control |
|
3-4 |
-- |
-- |
Not Used |
|
5 |
YE |
7301 |
High Pressure Fuel Pump Actuator High Control |
|
6 |
D-GN/WH |
428 |
EVAP Canister Purge Solenoid Control |
|
7 |
OG |
5275 |
Camshaft Position Intake Sensor Signal |
|
8-9 |
-- |
-- |
Not Used |
|
10 |
OG |
225 |
Generator Turn On Signal |
|
11-12 |
-- |
-- |
Not Used |
|
13 |
BN/WH |
2130 |
Low Reference |
|
14 |
-- |
-- |
Not Used |
|
15 |
GY |
705 |
5-Volt Reference 2 |
|
16 |
D-GN |
6391 |
Turbo Bypass Valve Control |
|
17 |
TN/BK |
231 |
Oil Pressure Switch Signal |
|
18 |
YE |
258 |
Wastegate Solenoid Control |
|
19-23 |
-- |
-- |
Not Used |
|
24 |
YE |
581 |
TAC Motor Control - 1 |
|
25 |
-- |
-- |
Not Used |
|
26 |
L-BU |
4804 |
Direct Fuel Injector (DFI) High Voltage Control Cylinder 4 |
|
27 |
L-BU/WH |
4904 |
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4 |
|
28 |
D-BU |
4802 |
Direct Fuel Injector (DFI) High Voltage Control Cylinder 2 |
|
29 |
D-BU/WH |
4902 |
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2 |
|
30 |
GY |
23 |
Generator Field Duty Cycle Signal |
|
31-33 |
-- |
-- |
Not Used |
|
34 |
D-GN |
5273 |
Camshaft Position Exhaust Sensor Signal |
|
35 |
YE |
573 |
CKP Sensor Signal |
|
36 |
YE |
2918 |
FRP Sensor Signal |
|
37 |
L-GN |
432 |
MAP Sensor Signal |
|
38 |
GY |
598 |
5-Volt Reference 1 |
|
39 |
GY |
2701 |
5-Volt Reference 3 |
|
40 |
-- |
-- |
Not Used |
|
41 |
TN |
552 |
Low Reference |
|
42 |
TN |
808 |
Low Reference |
|
43 |
-- |
-- |
Not Used |
|
44 |
TN |
2761 |
Low Reference |
|
45 |
GY |
605 |
5-Volt Reference 3 |
|
46 |
TN |
452 |
Low Reference |
|
47 |
-- |
-- |
Not Used |
|
48 |
BN |
582 |
TAC Motor Control - 2 |
|
49-50 |
-- |
-- |
Not Used |
|
51 |
BN |
4801 |
Direct Fuel Injector (DFI) High Voltage Control Cylinder 1 |
|
52 |
D-GN |
4803 |
Direct Fuel Injector (DFI) High Voltage Control Cylinder 3 |
|
53 |
D-GN/WH |
4903 |
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3 |
|
54 |
BN/WH |
419 |
MIL Control |
|
55 |
PU |
2121 |
IC 1 Control |
|
56 |
D-GN/WH |
2124 |
IC 4 Control |
|
57-58 |
-- |
-- |
Not Used |
|
59 |
D-BU |
496 |
KS 1 Signal |
|
60 |
GY |
2303 |
KS 2 Signal |
|
61-63 |
-- |
-- |
Not Used |
|
64 |
TN |
407 |
Low Reference |
|
65 |
-- |
-- |
Not Used |
|
66 |
PU |
7330 |
Pre-Throttle Air Temp and Press (TMAP) Air Pressure Signal |
|
67 |
TN/WH |
3111 |
Heated Oxygen Sensor Low Signal Sensor 1 |
|
68 |
WH |
5279 |
Heated Oxygen Sensor Pump Current Sensor 1 |
|
69-72 |
-- |
-- |
Not Used |
|
73 |
PU |
7300 |
High Pressure Fuel Pump Actuator Low Control |
|
74 |
-- |
-- |
Not Used |
|
75 |
BN/WH |
4901 |
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1 |
|
76-77 |
-- |
-- |
Not Used |
|
78 |
BN |
2129 |
Low Reference |
|
79 |
L-BU |
2123 |
IC 3 Control |
|
80 |
OG/WH |
2122 |
IC 2 Control |
|
81 |
-- |
-- |
Not Used |
|
82 |
YE |
410 |
ECT Sensor Signal |
|
83 |
GY |
1716 |
KS 1 Signal |
|
84 |
L-BU |
1876 |
KS 2 Signal |
|
85 |
-- |
-- |
Not Used |
|
86 |
L-BU |
7329 |
Pre-Throttle Air Temp and Press (TMAP) Temperature Signal |
|
87 |
-- |
-- |
Not Used |
|
88 |
TN |
2752 |
Low Reference |
|
89 |
PU |
486 |
TP Sensor 2 Signal |
|
90 |
D-GN |
485 |
TP Sensor 1 Signal |
|
91 |
L-GN |
5278 |
Heated Oxygen Sensor Input Pump Current Sensor 1 |
|
92 |
PU/WH |
3110 |
Heated Oxygen Sensor High Signal Sensor 1 |
|
93-94 |
-- |
-- |
Not Used |
|
95 |
GY |
597 |
5-Volt Reference 1 |
|
96 |
GY/WH |
3113 |
Heated Oxygen Sensor Heater Low Control Sensor 1 |
Connector Part Information
|
Terminal Part Information
|
|
Pin |
Wire Color |
Circuit No. |
Function |
|---|---|---|---|
|
1 |
BK/WH |
451 |
Ground |
|
2 |
BK/WH |
451 |
Ground |
|
3 |
PK/BK |
5290 |
Ignition 1 Voltage |
|
4 |
BK/WH |
451 |
Ground |
|
5 |
PK/BK |
5290 |
Ignition 1 Voltage |
|
6 |
PK/BK |
5290 |
Ignition 1 Voltage |
|
7 |
GY/WH |
3122 |
Heated Oxygen Sensor Heater Low Control Sensor 2 |
|
8 |
-- |
-- |
Not Used |
|
9 |
TN |
2759 |
Low Reference |
|
10 |
D-GN/WH |
465 |
Fuel Pump Relay Control |
|
11 |
TN |
5514 |
A/C Refrigerant Pressure Sensor Low Reference (C60) |
|
12 |
YE |
447 |
Starter Relay Coil Control |
|
13 |
YE |
492 |
MAF Sensor Signal |
|
14 |
GY |
2709 |
5-Volt Reference 1 |
|
15 |
D-BU |
1161 |
APP Sensor 1 Signal |
|
16 |
BN/WH |
379 |
CPP Switch Signal (MA5) |
|
17 |
OG/BK |
1786 |
Transmission Park/Neutral Signal (M82) |
|
18 |
L-GN |
24 |
Backup Lamp Supply Voltage (M82) |
|
19 |
WH |
1310 |
EVAP Canister Vent Solenoid Control |
|
20 |
BN |
7448 |
Vacuum Assist Pump Relay Coil Control |
|
21 |
-- |
-- |
Not Used |
|
22 |
TN |
2760 |
Low Reference |
|
23 |
TN/WH |
3121 |
Heated Oxygen Sensor Low Signal Sensor 2 |
|
24 |
-- |
-- |
Not Used |
|
25 |
L-BU |
1162 |
APP Sensor 2 Signal |
|
26 |
-- |
-- |
Not Used |
|
27 |
D-GN |
890 |
Fuel Tank Pressure Sensor Signal |
|
28 |
-- |
-- |
Not Used |
|
29 |
D-BU |
1809 |
Brake Booster Vacuum Sensor Signal |
|
30 |
-- |
-- |
Not Used |
|
31 |
D-BU |
6306 |
Clutch Start Neutral Start Signal (MA5) |
|
32-33 |
-- |
-- |
Not Used |
|
34 |
BN |
1271 |
Low Reference |
|
35 |
GY |
2700 |
5-Volt Reference 3 (C60) |
|
36 |
PU |
1589 |
Fuel Level Sensor Signal |
|
37 |
-- |
-- |
Not Used |
|
38 |
PU |
3120 |
Heated Oxygen Sensor High Signal Sensor 2 |
|
39 |
OG/BK |
380 |
A/C Refrigerant Pressure Sensor Signal (C60) |
|
40 |
PU |
401 |
OSS Low Signal (MA5) |
|
41 |
BN |
4 |
Accessory Voltage |
|
42 |
TN/BK |
2500 |
High Speed GMLAN Serial Data Bus (+) |
|
43 |
-- |
-- |
Not Used |
|
44 |
D-GN/WH |
459 |
A/C Compressor Clutch Relay Control (C60) |
|
45 |
-- |
-- |
Not Used |
|
46 |
WH |
2368 |
Cooling Fan Speed Control |
|
47 |
PU |
1272 |
Low Reference |
|
48 |
TN |
1274 |
5-Volt Reference 3 |
|
49 |
WH/BK |
1164 |
5-Volt Reference 2 |
|
50 |
L-BU |
6289 |
Induction Air Temperature Sensor Signal |
|
51 |
-- |
-- |
Not Used |
|
52 |
L-BU |
20 |
Stop Lamp Supply Voltage (M82) |
|
53 |
YE |
400 |
OSS High Signal (MA5) |
|
54 |
PK |
1039 |
Ignition 1 Voltage |
|
55 |
TN |
2501 |
High Speed GMLAN Serial Data BUS (-) |
|
56 |
RD/WH |
840 |
Battery Positive Voltage |
|
57 |
-- |
-- |
Not Used |
|
58 |
YE |
5991 |
Powertrain Relay Coil Control |
