might sound weird but I cant find any pics of yoru guys aftercooler setup. How is it done with a roots style blower? Looking to make a custom one for my car (Corolla). Thanks



the core for the cooling is part of the intake manifold , it has a electric water pump , and a radiator type core for the heat exchanger

if you do a search someone long time ago posted a short vid clip that kinda showed how it works



its below the blower

there's also a heat exchange between the radiator and a/c condenser in the front



so the blower and aftercooler are one piece??



blower bolts on above it and passes air through it just before it goes up into the manifold then into the head



Try this
http://gallery.underclockers.net/alb...ar/CAC_VID.wmv
WopOnTour



if that doesn't explain it then i don't know what will

great post



are you on TN?



The page cannot be displayed
The page you are looking for is currently unavailable. The Web site might be experiencing technical difficulties, or you may need to adjust your browser settings.

--------------------------------------------------------------------------------

Please try the following:

Click the Refresh button, or try again later.

If you typed the page address in the Address bar, make sure that it is spelled correctly.

To check your connection settings, click the Tools menu, and then click Internet Options. On the Connections tab, click Settings. The settings should match those provided by your local area network (LAN) administrator or Internet service provider (ISP).
If your Network Administrator has enabled it, Microsoft Windows can examine your network and automatically discover network connection settings.
If you would like Windows to try and discover them,
click Detect Network Settings
Some sites require 128-bit connection security. Click the Help menu and then click About Internet Explorer to determine what strength security you have installed.
If you are trying to reach a secure site, make sure your Security settings can support it. Click the Tools menu, and then click Internet Options. On the Advanced tab, scroll to the Security section and check settings for SSL 2.0, SSL 3.0, TLS 1.0, PCT 1.0.
Click the Back button to try another link.



Cannot find server or DNS Error
Internet Explorer


my pc sucks



link works fine for me and many others
fix your **** up
Wop



Exactly. WOP cannot post a bad link. It is as impossible as him posting bad info. Just never gonna happen.

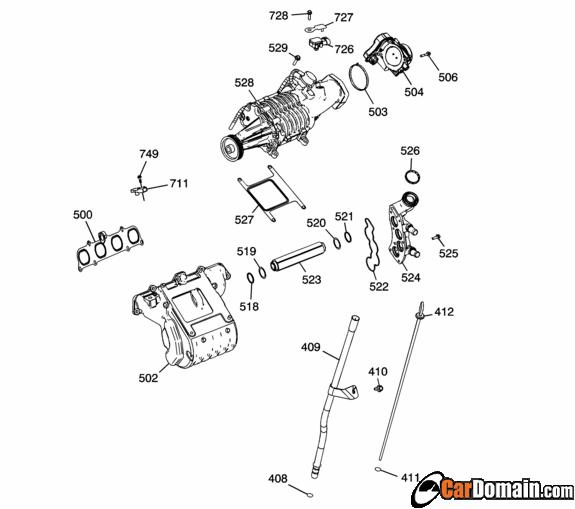

This also orginally from Wopontour

Part 502 is the intercooler/intake manifold. Thats the part you want to replicate.



And dont forget that diagram is a bit misleading as there are FOUR Laminova cores (part# 523)
WOT



great stuff guys, thanks!
