2.0L LSJ Performance Tech 205hp Supercharged SS tuner version. 200 lb-ft of torque.

Devils meth injection

Thread Tools

Search this Thread

Old Feb 22, 2014 | 09:41 AM
  #1
blk&ylw's Avatar
Thread Starter
New Member

Joined: 08-15-13
Posts: 34
Likes: 0
From: Jacksonville, FL
Devils meth injection

Can someone please help me on how to wire this up? The little abbreviations on top dont make sense. Obviously power and ground and the pump i think? plug into that but i have no idea which way or even if thats right. Im guessing on the bottom is where i basically splice it in the hose that comes out of the top of the intake manifold right?
Reply
Old Feb 22, 2014 | 10:19 AM
  #2
Bluelightning's Avatar
Got Bewst?
iTrader: (8)

Joined: 03-16-10
Posts: 10,948
Likes: 33
From: Winnipeg, Manitoba
Which kit do you have?
Reply
Old Feb 22, 2014 | 10:30 AM
  #3
blk&ylw's Avatar
Thread Starter
New Member

Joined: 08-15-13
Posts: 34
Likes: 0
From: Jacksonville, FL
The stage one kit, the one you recommended me to order.
Reply
Old Feb 22, 2014 | 10:38 AM
  #4
Bluelightning's Avatar
Got Bewst?
iTrader: (8)

Joined: 03-16-10
Posts: 10,948
Likes: 33
From: Winnipeg, Manitoba

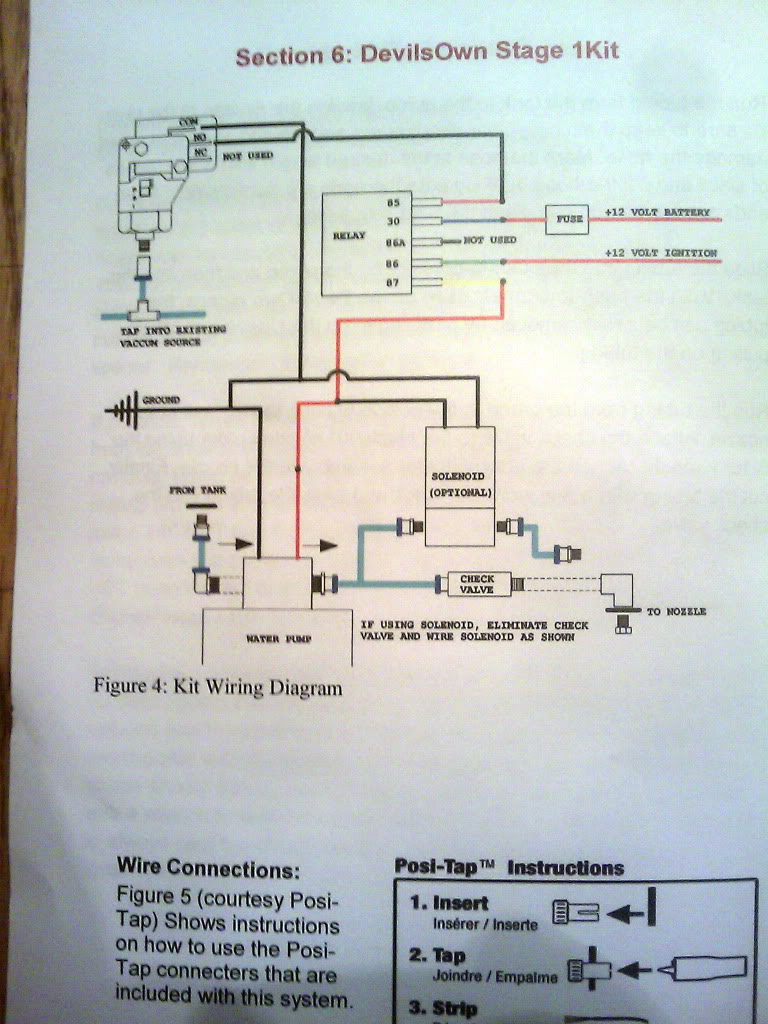

Ah ok. Here's a diagram that should help you get it wired up. As for the boost switch yes it gets tapped into the vaccum line off the intake mani.

Name:  IMAGE_284.jpg
Views: 26
Size:  145.3 KB
Reply
Old Feb 22, 2014 | 10:42 AM
  #5
blk&ylw's Avatar
Thread Starter
New Member

Joined: 08-15-13
Posts: 34
Likes: 0
From: Jacksonville, FL
Did you get that paper with your kit? and i dont have that relay its talking about... thats why non of this makes sense
Reply
Old Feb 22, 2014 | 11:09 AM
  #6
Bluelightning's Avatar
Got Bewst?
iTrader: (8)

Joined: 03-16-10
Posts: 10,948
Likes: 33
From: Winnipeg, Manitoba
Ya that came with the kit. You're missing that relay. Its what triggers power to your pump.
Reply
Old Feb 22, 2014 | 11:17 AM
  #7
blk&ylw's Avatar
Thread Starter
New Member

Joined: 08-15-13
Posts: 34
Likes: 0
From: Jacksonville, FL
Yea i didnt receive the relay in my kit. Alright well thanks for the picture that will help when i receive a relay
Reply
