2.0L LNF Performance Tech 260hp and 260 lb-ft of torque Turbocharged tuner version.

Anyone want Ecm Diagram, here u go

Reply Subscribe

Search this Thread

Old

Jan 1, 2011 | 02:47 AM

#1

tomj77

Thread Starter

Super Moderator

Platinum Member

iTrader: (2)

Joined: 07-14-08

Posts: 12,039

Likes: 156

From: canada

Anyone want Ecm Diagram, here u go

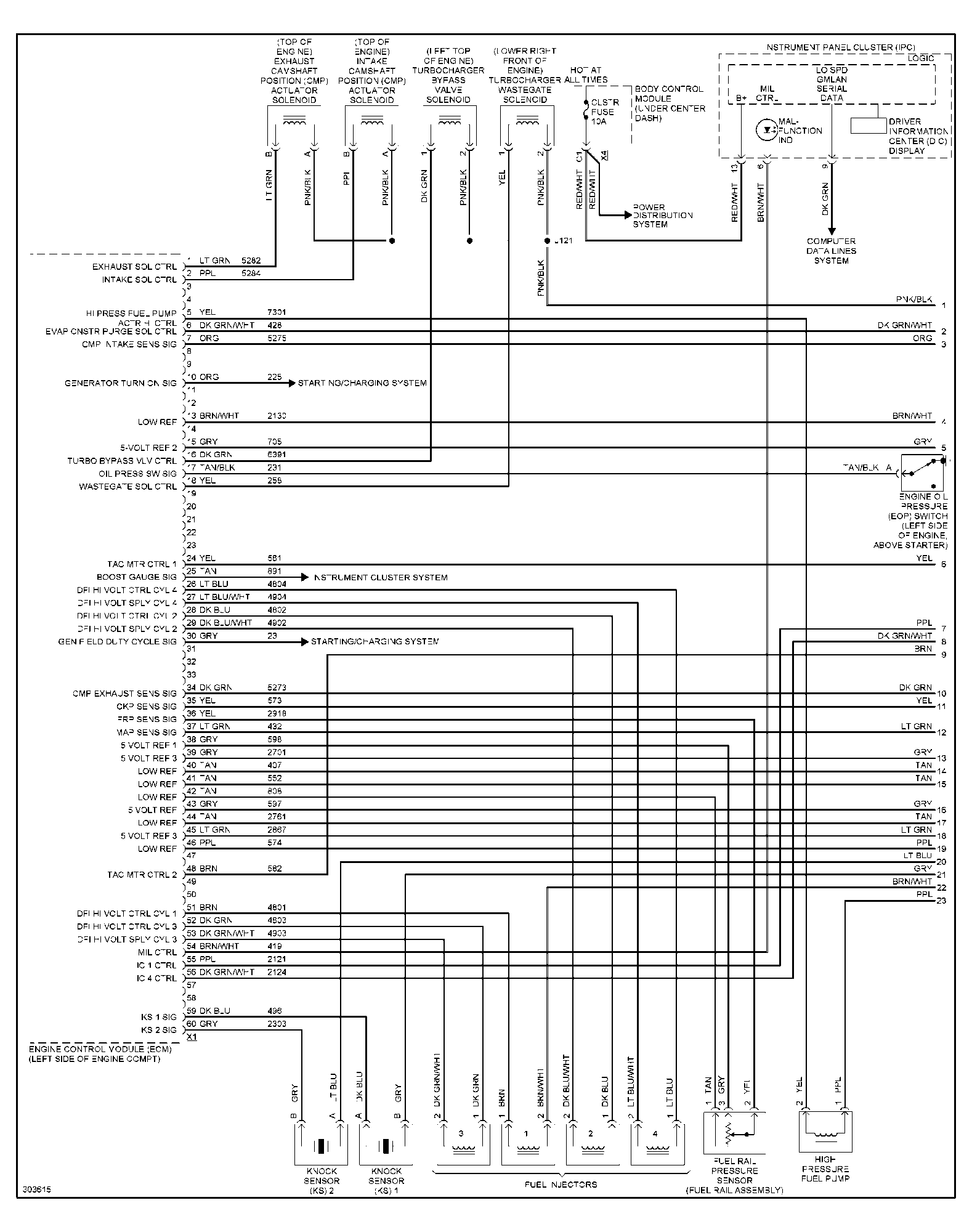

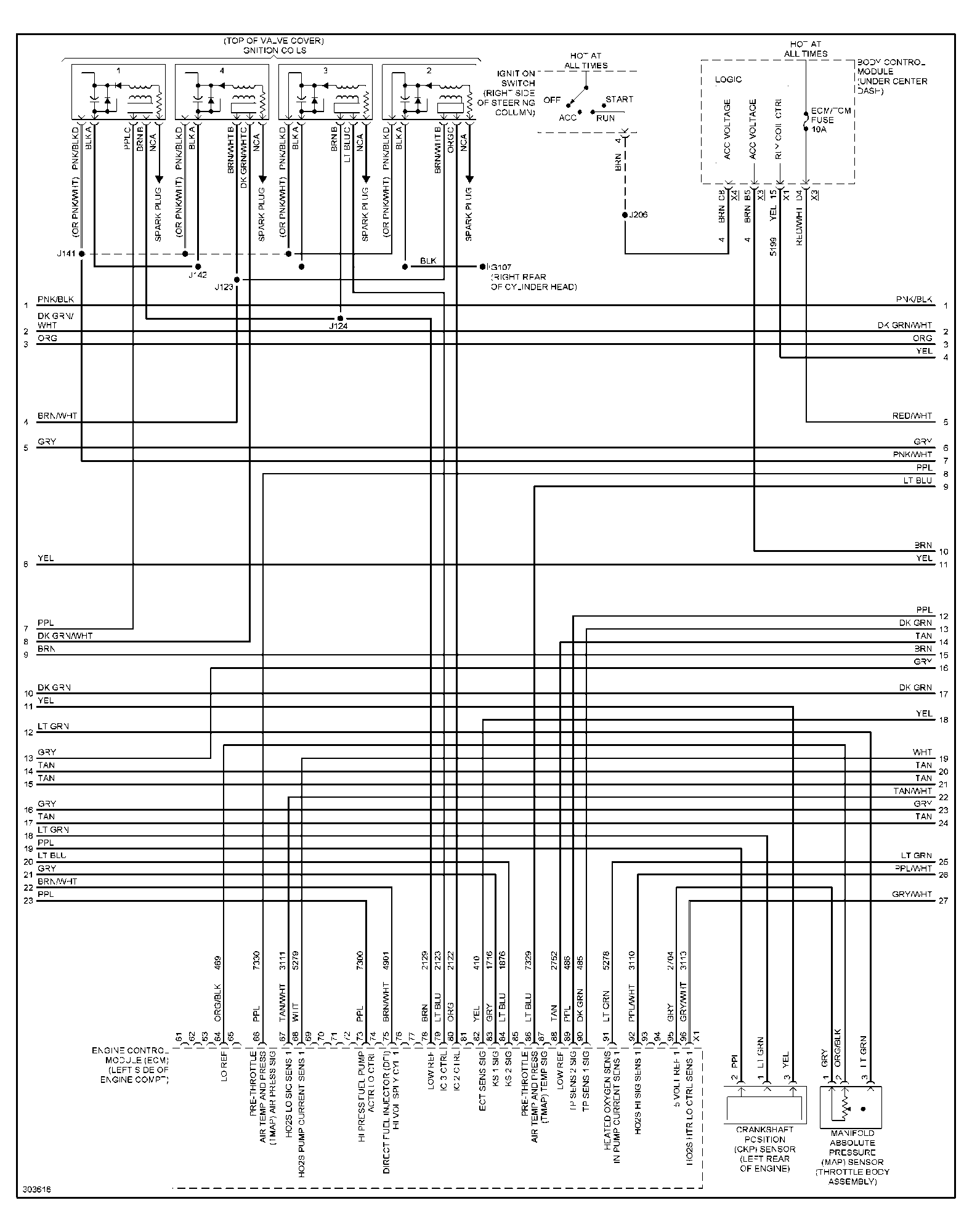

Here is the ECU pinouts for LNF. need anything else let me know

Last edited by tomj77; Mar 6, 2016 at 01:30 AM.

Reply

Old

Jan 1, 2011 | 08:36 AM

#2

reddevil

Senior Member

iTrader: (1)

Joined: 03-03-10

Posts: 512

Likes: 0

From: nj

good post.. printed out and put in folder..

Reply

Old

Mar 5, 2016 | 07:09 PM

#3

cobalt96

New Member

Joined: 03-04-16

Posts: 10

Likes: 0

From: South Carolina

Quote:

Originally Posted by tomj77

Here is the ECU pinouts for LNF. need anything else let me know

Untitled Document

I cant get the picture to pull up. Is there any way i can get it from you?

Reply

Old

Mar 6, 2016 | 01:30 AM

#4

tomj77

Thread Starter

Super Moderator

Platinum Member

iTrader: (2)

Joined: 07-14-08

Posts: 12,039

Likes: 156

From: canada

fixed

Reply
