Anyone else get confused as i do trying tigure out which fuse is which? The schematic literally doesnt seem to match no katter which way you turn it except mayybe upside down.. Any pointers? Just trying to figure out why my sunroof wont open. Lol

riceburner

iTrader: (66)

You know what... Yep. Its just upside down. Which is dumb but whatever lol

blueLNFftw

iTrader: (16)

6 thru 25 are what matter.

31 and 32 are actually the red plug.

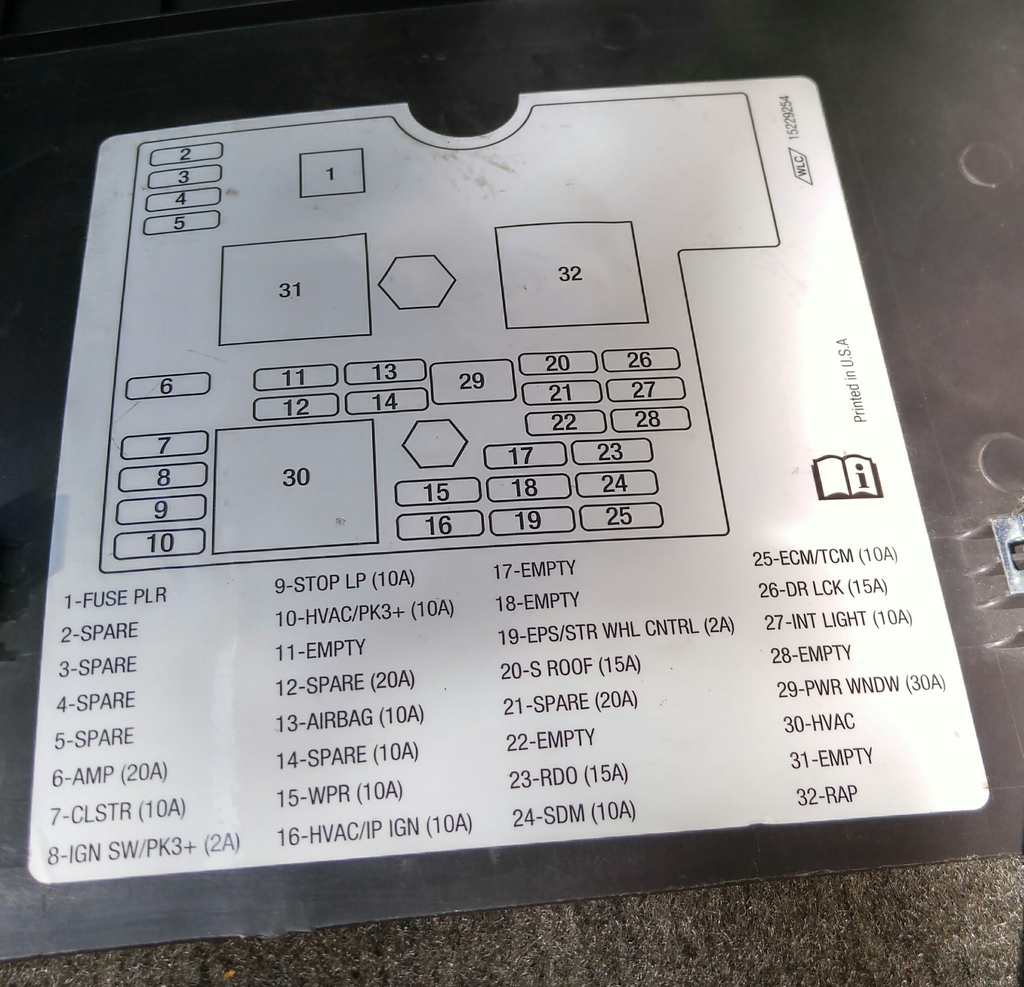

Turn your photo of the cover 180 degrees and it lines up.

Snail_SS

iTrader: (3)

Lol that funny ive never seen that thing like that

Dipped_Cobalt

I hate that thing when I gotta reference it.

i usually go by amps to see which is which.

Snail_SS

iTrader: (3)

I have a list of descriptions of that fuse box if you need it rice let me know and ill post it up

keiserX13

iTrader: (3)

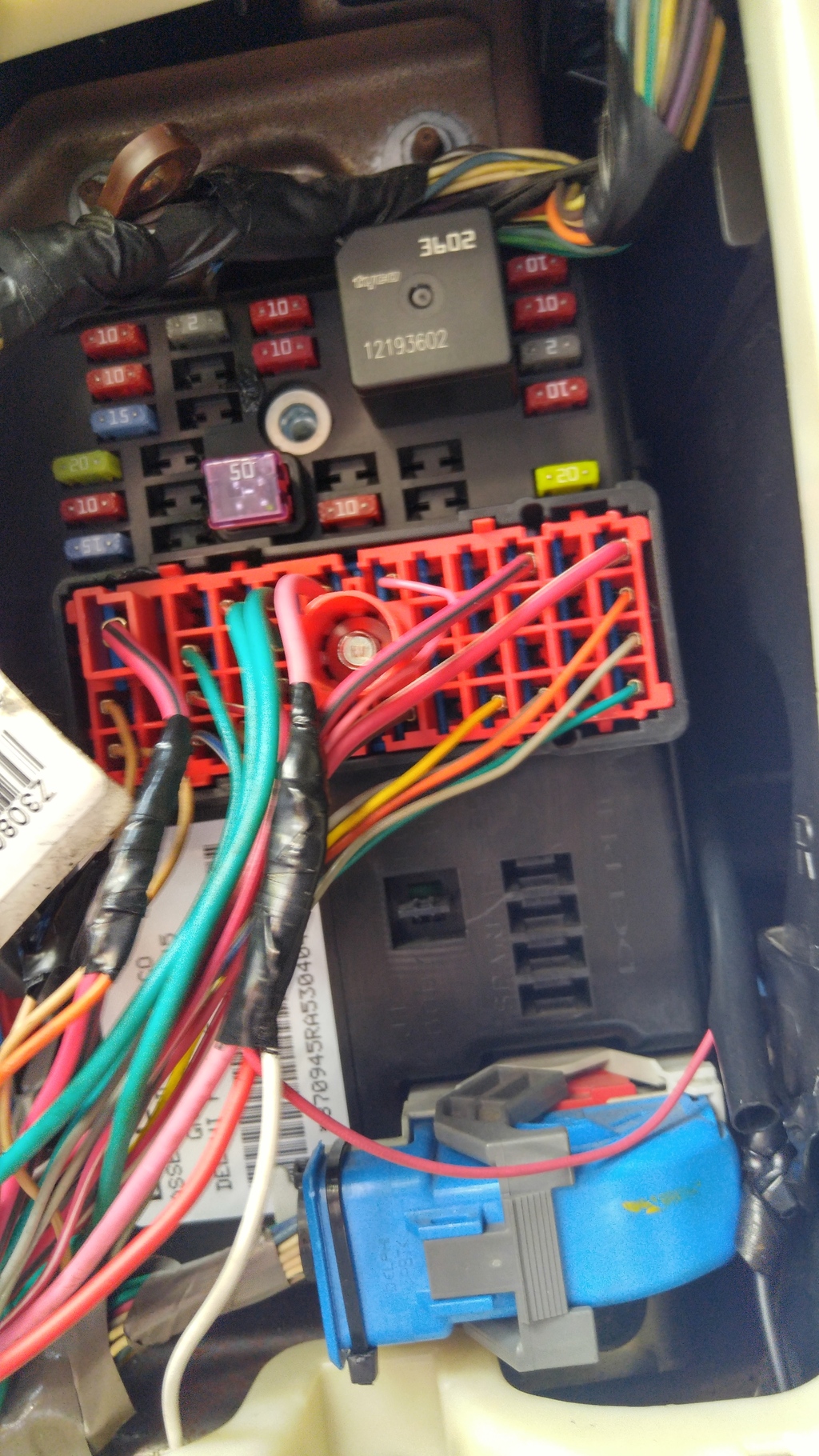

the 2 hexagons are the screws and #30 is the big square relay that should help getting the orientation right

Kolt

This should help. In gm si its orientated the correct direction lol
so if anyone wants to print this out and stick it to theirs like I have here you go.
BTW your missing your sunroof fuse. its #20. left of the 50amp fuse you have there. which you need to change back to a 30 so you don't fry the bcm if something goes wrong.

umrdyldo

iTrader: (1)

#29 says 30A fuse, but it appears you have a 50 amp in there.

Is that on purpose?

Dipped_Cobalt

and he wonders why he fries computers...?

Snail_SS

iTrader: (3)

^

riceburner

iTrader: (66)

Thanks guys. I think gm left my car awry lol. It was all apart. Battery wasnt even halfway mounted in the trunk.

I swear i never could tell what the orientation was even flpped upside down until right after i made this thread lol

riceburner

iTrader: (66)

Thanks kolt will do!!
