This is a really easy install, took less than 30 minutes.


-First, remove the breather line. This is important if you ever want to re-use the stock intake, otherwise the nipple will break off as you mess with removing the air box.

-disconnect the MAF sensor connector but leave the MAF sensor in the old intake tube. This is to protect it from accidental damage or dirt while you do the rest of the steps.

-loosen the worm clamp attaching the intake to the air box, and remove the two bolts holding the air box to the shock tower.

-remove the air box (do not need to remove the air filter or top of the air box)

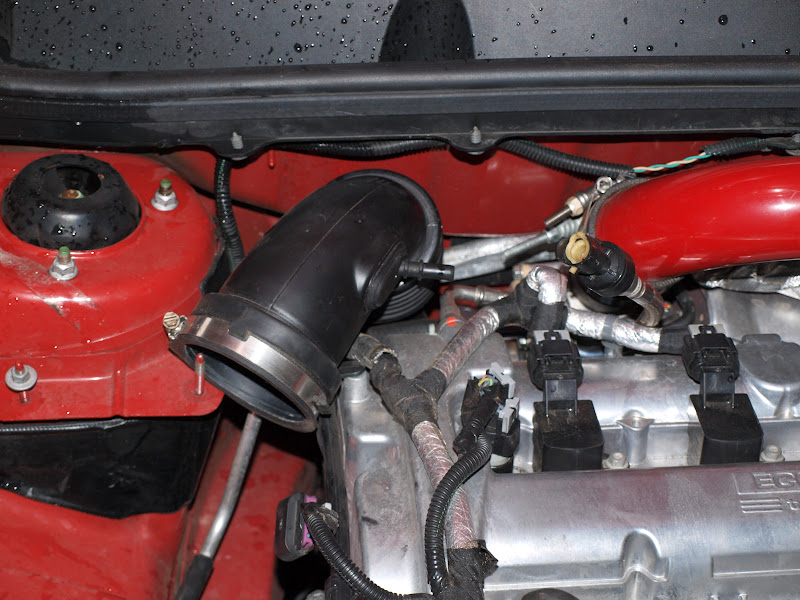

Now it should look like this:

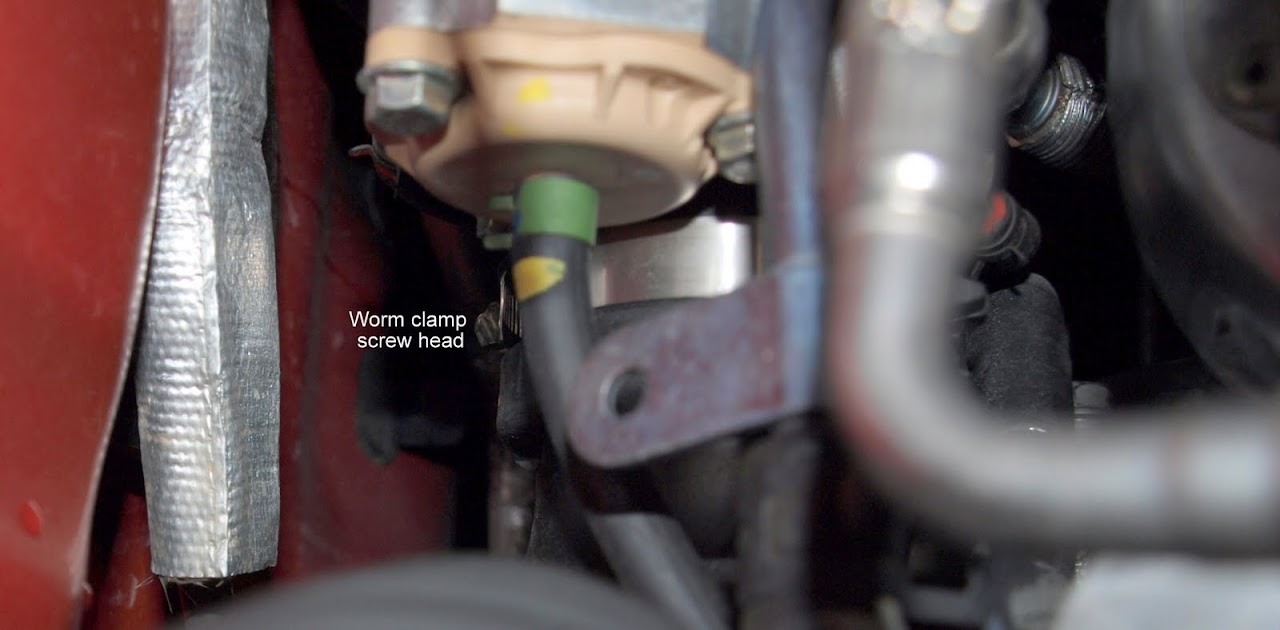

Next, locate the small bolt head to the worm clamp going to the turbo inlet:

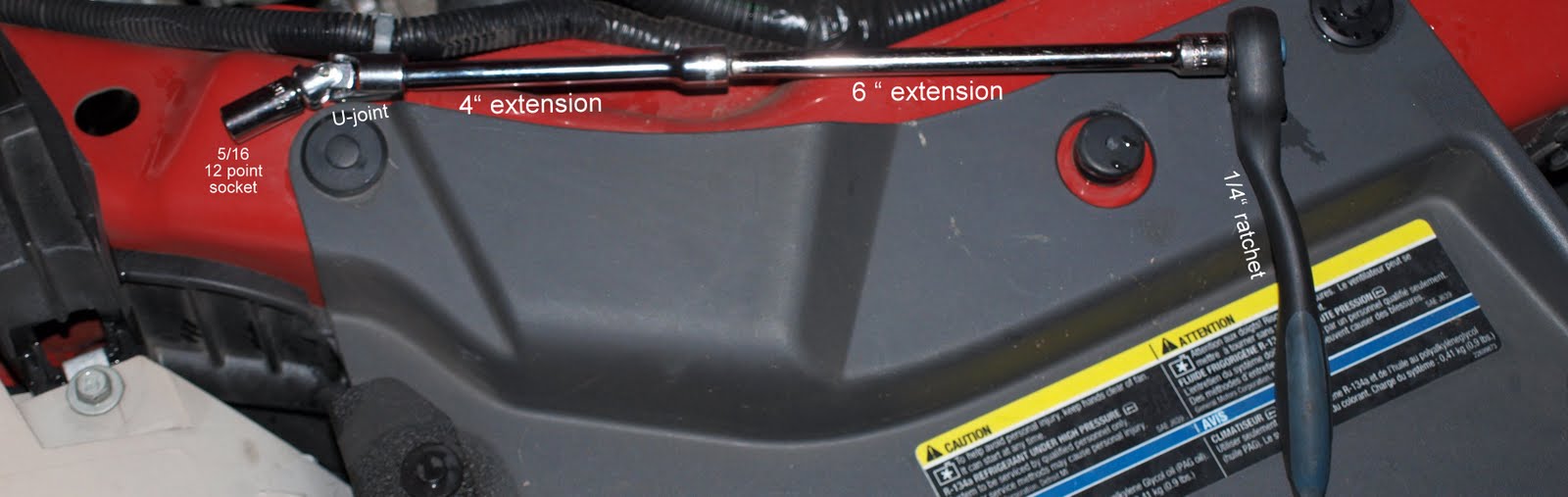

Here is a picture of the tool I used to get the worm clamp off. its a 5/16ths 12 point socket. NOTE - this is not the exact right socket to fit the head of the bolt, I used a 5/16ths 12 point since it was a little more giving and made it easier to get over the head of the worm clamp. This clamp is not super tight so using this socket is fine. The bolt head is the same size as the one on the air box worm clamp.

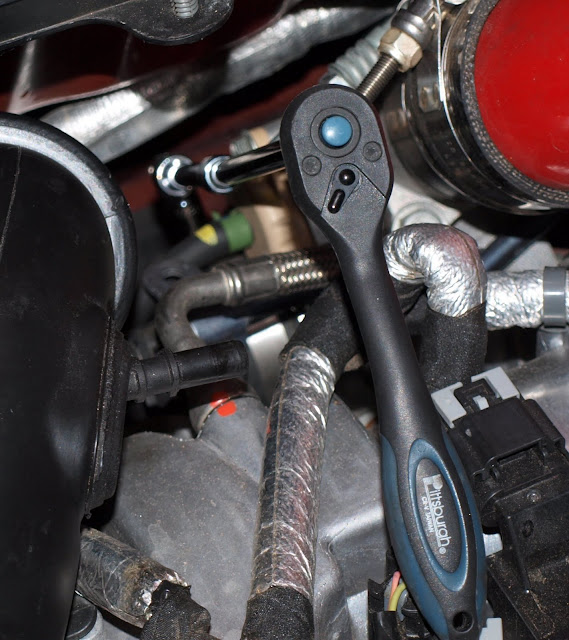

..and a pic of it on the bolt head of the worm clamp:



Once you have loosened the clamp enough, simply work the intake tube out and remove.

Slide the new intake tube (in the case of this CIA short ram it is a silicone coupler) with the worm clamp already in place, tightened just enough so it doesnt slide back and forth on the coupler. Once in place on the turbo inlet, you can slide the worm clamp forward, over the hump, and position it approx. in the same orientation as the original worm clamp. This allows easiest access to get your ratchet back on the head of the clamp, and tighten just enough so the worm clamp won't slide.

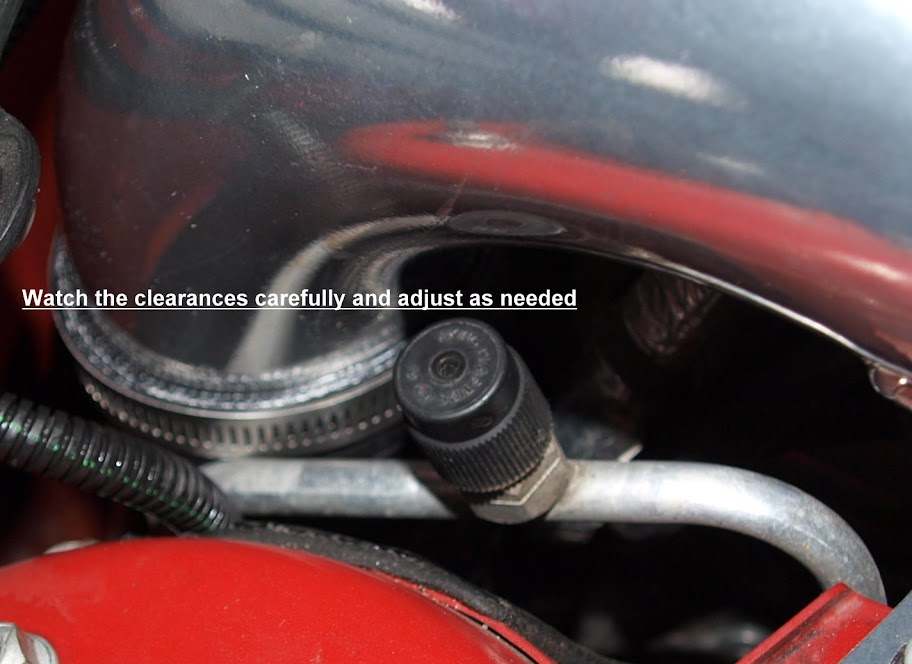

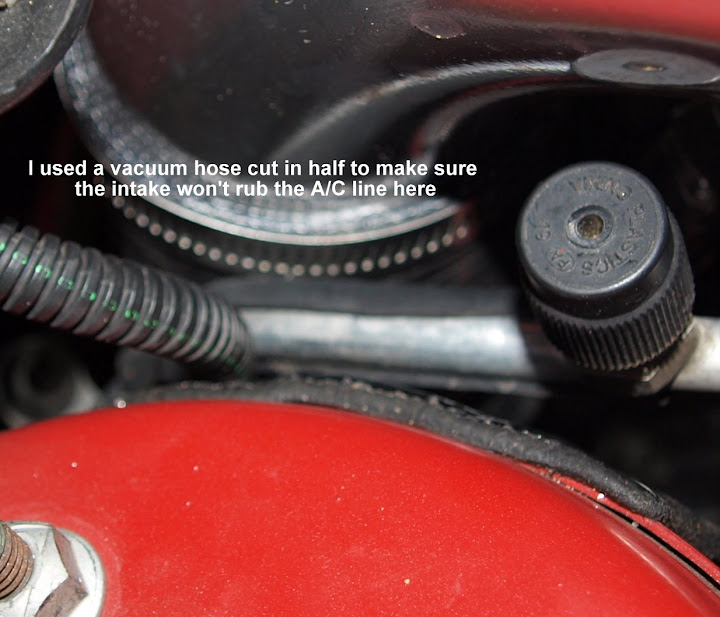

Insert the metal tube into the other end, following the same proceedure for the worm clamp. Once finger tight, work with the alignment of the two peices. You need to be aware of the clearances and be careful around the A/C line. It is soft aluminum and easy to break, also you don't want the intake rubbing on it.

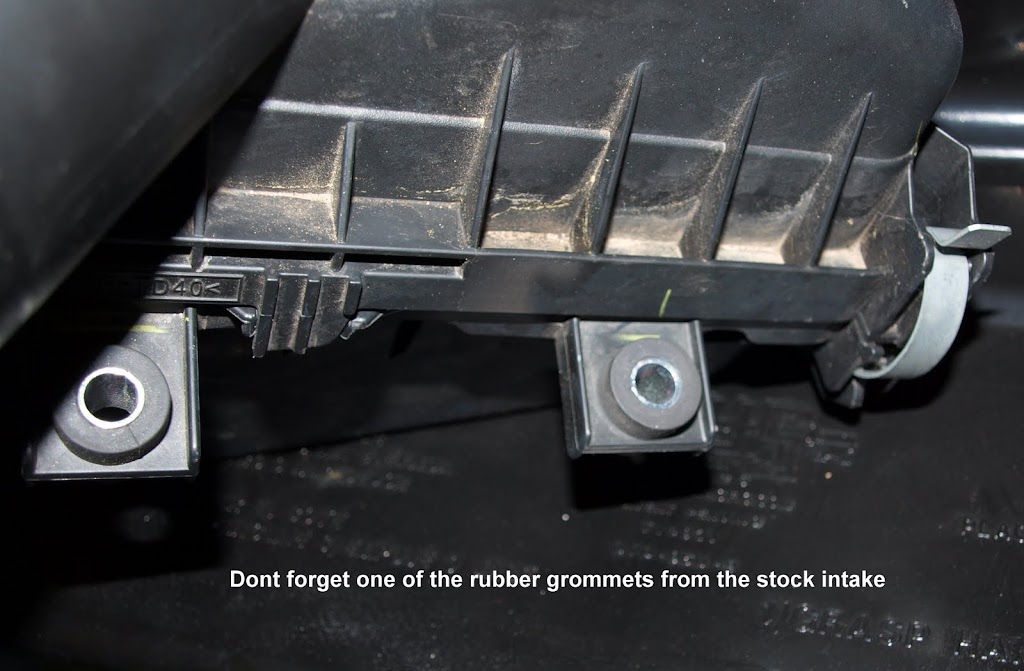

Remove one of the rubber grommets from your original air box. Simply slide the steel rod out of the center and fold it down and out the hole. Then insert it into the hole on the intake, and lightly bolt into place.

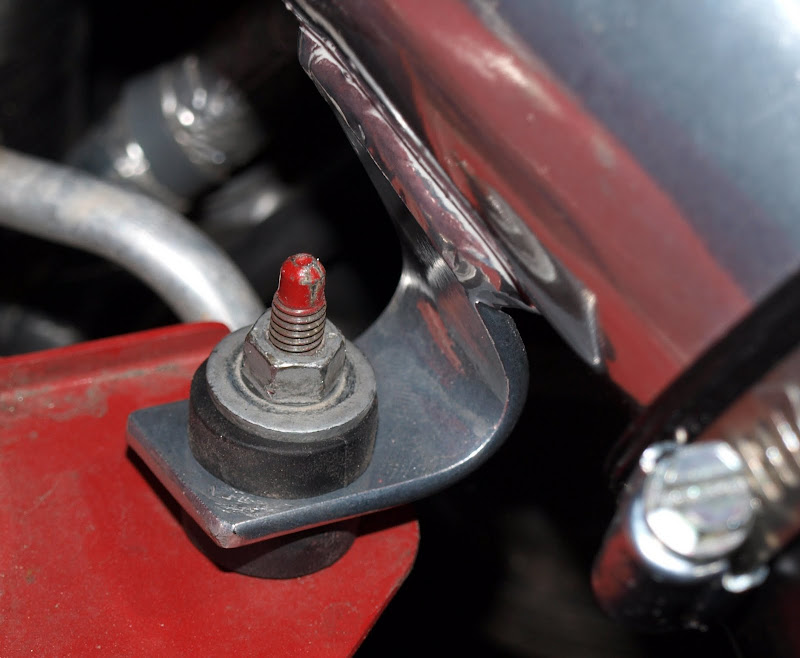

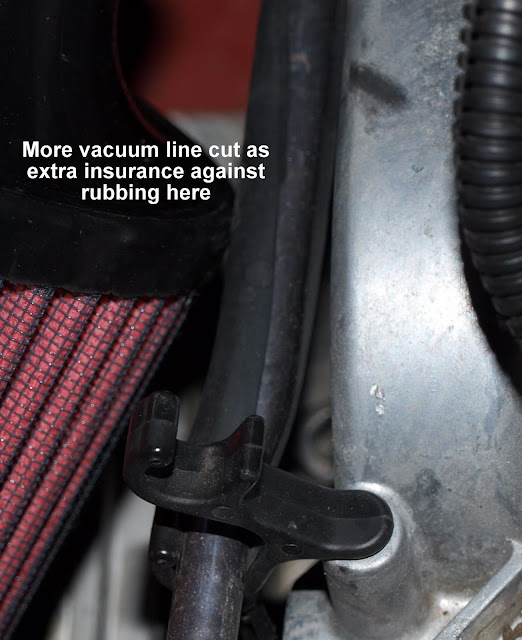

Then once everything is lined up correctly, tighten everything down (turbo inlet, air tube clamp, and mounting bolt). Then its just a matter of sliding on the filter, again checking clearances (the filter won't move much if at all, but it is close to the A/C line again) and tightening it down.

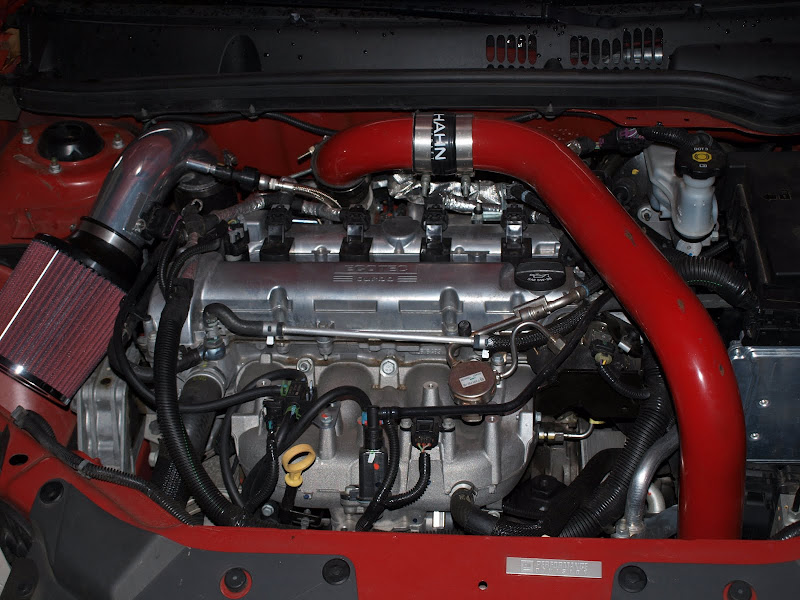

Reconnect the breather line, transfer your MAF from the old intake tube to the new one (don't lose the screws! This intake comes with new ones, but if you ever want to go back...) and you are done! Take it for a test drive and enjoy the sound of the new intake..
