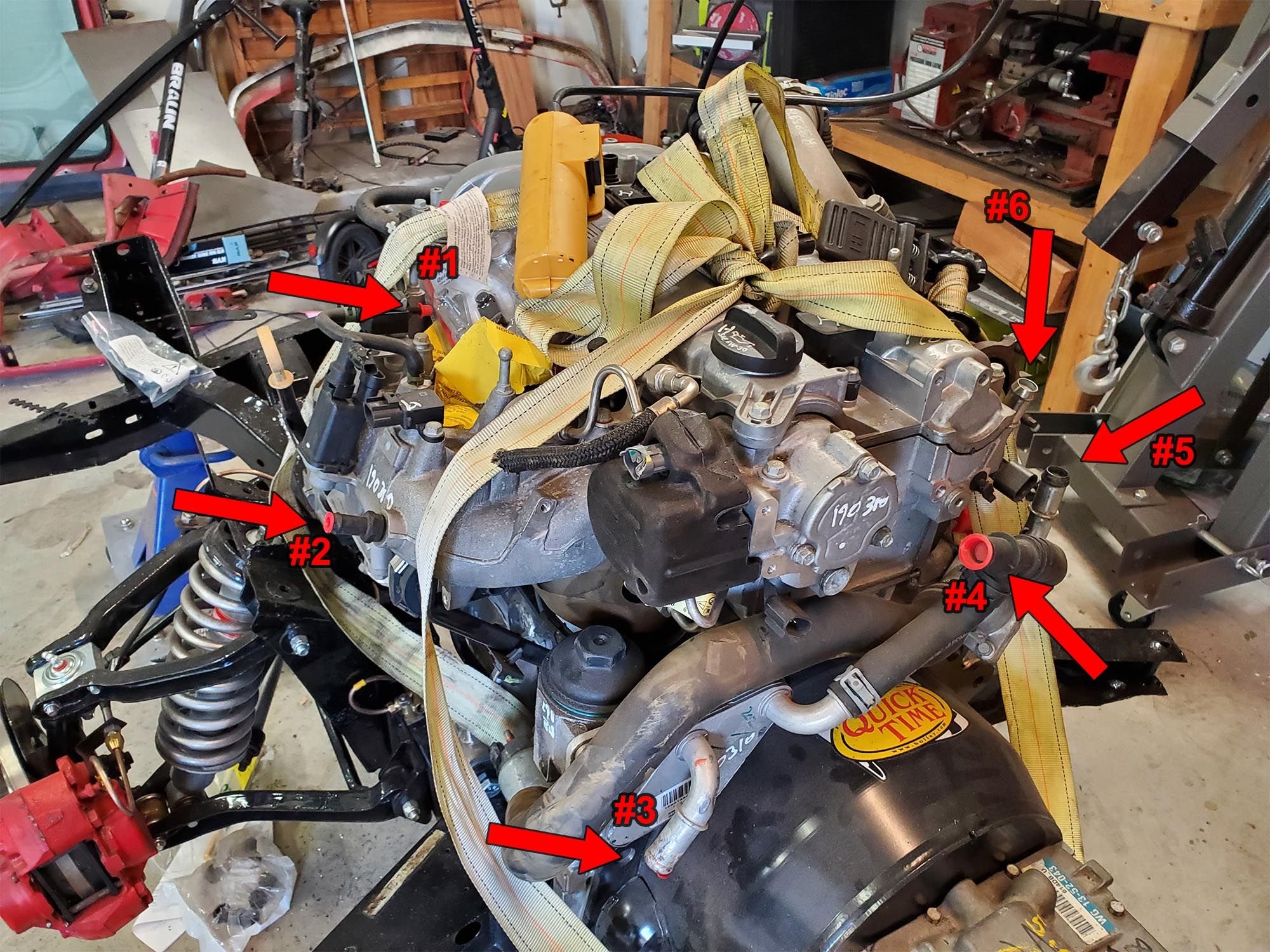

I am in the process of swapping an Ecotec LNF into an old British sports car. I purchased the engine online, and it didn't come with most of the hoses or accessories. I've been trying to find a diagram online that shows what all these ports are, but haven't had any luck. Would any of you guys happen to have a diagram/drawing/anything that can help me identify what these ports are for and where they are supposed to go to?




Thanks!

Josh



Can't tell what 1 is pointing to
#2 is the brake booster vacuum source connection.
#3 is the oil cooler, coolant feed
#4 needs another line connected to connect to the coolant overflow tank
#5 feed or return to the heater core
#6 feed or return to the heater core

It also looks like you're going to need a new hpfp connector at minimum, not sure if you can buy just the connector. (Grey connector that is sticking out of the black cover below and left of the oil cap in your pic)



This should help with #1
https://www.cobaltss.net/forums/prob...delete-322893/



Awesome, thanks! Does it matter where the source for #3 comes from?



Radiator outlet should be the source there.

I bought the service manual from emanualsonline, here is the link to one I picked up that has most of the factory service manual https://www.emanualonline.com/Cars/C...ir-Manual.html
