How To: Remove Fuse Box

I remember 07metallic making a thread asking if it was easy, and there were a few of us who responded with instructions. i've had mine apart countless times and noticed there wasn't a how-to thread. so now there is....


Tools needed.

ratchet, 1/4 or 3/8 depending on what sockets you have
13mm socket
10mm socket. i use a deep just cause i happen to have one. a regular may work though.
7mm socket
Beer

First unhook the battery terminal in the trunk.

Start by simply taking off the top cover to expose the fuses and relays.

Name:  2012-11-25160143.jpg
Views: 12460
Size:  129.0 KB



Next take a 10mm and unscrew the positive terminal on the fuse box and remove the wires.

Name:  2012-11-25160242.jpg
Views: 13335
Size:  100.2 KB



Using the 7mm socket unscrew the 5 bolts that hold the terminal assemblies underneath. a 1/4 to 1/2 a turn will loosen them enough to where you can finish unscrewing by hand.

Name:  2012-11-251601432.jpg
Views: 3491
Size:  130.2 KB



When you feel them get tight again, lift up on these four tabs. there is one next to the coolant reservoir, two on the engine side, and one on the firewall side. this will lift the whole assembly up.

Name:  2012-11-25160304.jpg
Views: 2820
Size:  58.9 KB



Once it's up and 'off'. keep loosening the 5 bolts so the terminals come off the bottom and you'll find this. just unhook them and move them out of the way.

Name:  2012-11-25160348.jpg
Views: 6844
Size:  91.8 KB



Once you do that there are three bolts holding on the base of the fuse box. one 10mm on the coolant reservoir and two 13mm below the ecu. the 10mm needs to come off all the way obviously, but the two 13mm's only need to be loosened enough to pull the base up off the bottom bolt, and then over to slide the top bolt out through the bigger hole.

Name:  2012-11-25160643.jpg
Views: 2947
Size:  75.3 KB
Name:  2012-11-25160708.jpg
Views: 2777
Size:  84.6 KB


Move everything out of the way of whatever you're working on and there you have it. Fuse box removed.

Name:  2012-11-25161205.jpg
Views: 2906
Size:  132.9 KB

Last edited by EXsoccer1921; 11-26-2012 at 04:59 PM.
EXsoccer1921 is offline
Old 11-25-2012, 08:17 PM
  #2
Senior Member
iTrader: (2)

Join Date: 02-21-11
Location: Dayton, Ohio
Posts: 3,311
Likes: 0
Liked 7 Times in 7 Posts
First time seeing the pics with the gold piping and VC. Looks wonderful.

Anyways.. Good how to! Thank ya
TStone is offline
Old 11-25-2012, 08:21 PM
  #3
Super Moderator
Platinum Member
iTrader: (16)

Join Date: 09-29-06
Location: Land of Freedom
Posts: 23,083
Liked 152 Times in 123 Posts
Mark for president
07MetallicSC is offline
Old 11-25-2012, 08:31 PM
  #4
Senior Member
Platinum Member
Thread Starter
iTrader: (14)

EXsoccer1921's Avatar

Join Date: 05-04-08
Location: The 405
Posts: 37,072
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by TStone View Post
First time seeing the pics with the gold piping and VC. Looks wonderful.

Anyways.. Good how to! Thank ya

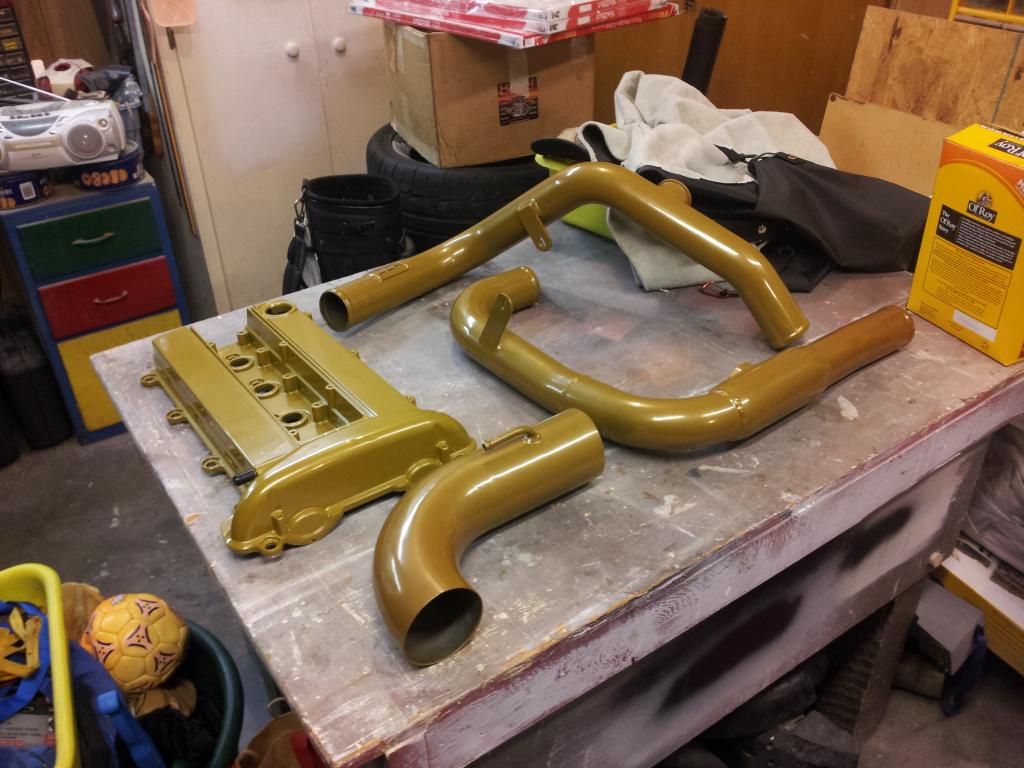

came out a little more flat than i was wanting but its still all the same and it looks great.
