Aftermarket front mount oil cooler

Ever since I got my ZFR my coolant temps at the road track are out of control. I want to install a larger aftermarket air-to-oil cooler instead of the built-in heat exchanger/oil cooler.
I'm looking for recommendations or shared experiences.

I found some information on here but nothing very specific. My coolant temps quickly reach 230+ after a few hard laps and continue to rise unless I abort my session. Here's what I've done so far in my track setup/tune:

reduce boost from 26 to 20psi (remember I'm a 5,400 feet);
Both fans turn on high constantly at 190F and over;
purged any air bubbles from coolant circuit;
AC delete - mainly to improve air flow to radiator

I'm running the Mishimoto radiator and the (large) ZZP FMIC.

I like that an oil cooler has the added benefit of some additional oil in the system. (1-2 qts)
I'm aware of the functions the stock oil cooler performs in terms of heating up the oil quicker. This is not my DD so longer heat-up times are not an issue.

Next track day I will run 90% distilled water/10% coolant just to see what effect that has.
Might turn the boost down a little more although I really don't want to ;-)
Any other suggestions for keeping temps down?

Any big turbo guys that road track their cars that can share experiences?

Thanks guys,

Adrian
colodude18 is offline
Old 09-05-2014, 05:12 PM
  #2
Senior Member
Thread Starter
iTrader: (4)

Join Date: 01-12-10
Location: Greater Denver Area, Colorado
Posts: 2,391
Thanked 105 Times in 84 Posts
Bump.

Nobody??
colodude18 is offline
Old 09-05-2014, 05:21 PM
  #3
N*gga Kevin
iTrader: (4)

Join Date: 01-21-11
Location: Lochbuie, Colorado
Posts: 12,948
Thanked 157 Times in 124 Posts
*Crickets*
leemanfor is offline
Old 09-05-2014, 06:25 PM
  #4
Senior Member
iTrader: (2)

Join Date: 07-04-10
Location: Carol Stream, IL
Posts: 3,283
Thanked 62 Times in 50 Posts
I have ideas on how to do it but just a good derale cooler with ran will run you 250 bucks plus lines and all that jazz... A buddy of mine came up with the idea but it hasent been tested on a race track scenario yet but it will work I'm sure. It's on my life of things to do as well.
Omiotek is offline
Old 09-06-2014, 02:38 AM
  #5
Senior Member
iTrader: (5)

Join Date: 10-23-12
Location: Clarence, NY
Posts: 5,142
Thanks: 0
Thanked 2 Times in 2 Posts
I'd ask ZZP what core they use on their bigger radiator, that's always an option even though then your Mishimoto radiator would be wasted money.
andrewcarr1993 is offline
Old 09-06-2014, 02:48 AM
  #6
Senior Member
iTrader: (3)

Join Date: 02-24-08
Location: NY
Posts: 1,841
Thanks: 0
Thanked 0 Times in 0 Posts
maybe a turbo blanket, improved air dam, larger/faster electric fans
Gunney_07 is offline
Old 09-06-2014, 08:21 AM
  #7
South Central *********
iTrader: (9)

Join Date: 05-14-05
Location: Texas
Posts: 6,066
Thanked 19 Times in 17 Posts
Im doing one on mine. Welded -10 fittings to the stock oil cooler and routed to a ford oil cooler
JapEatr is offline
Old 09-06-2014, 01:00 PM
  #8
Senior Member
Thread Starter
iTrader: (4)

Join Date: 01-12-10
Location: Greater Denver Area, Colorado
Posts: 2,391
Thanked 105 Times in 84 Posts
Originally Posted by Omiotek View Post
I have ideas on how to do it but just a good derale cooler with ran will run you 250 bucks plus lines and all that jazz... A buddy of mine came up with the idea but it hasent been tested on a race track scenario yet but it will work I'm sure. It's on my life of things to do as well.
I was also looking at a Derale, with a built in fan.

Originally Posted by andrewcarr1993 View Post
I'd ask ZZP what core they use on their bigger radiator, that's always an option even though then your Mishimoto radiator would be wasted money.
I had the ZZP radiator on my list of potential cooling mods, until <someone with authority on racing these cars> advised against it (don't wanna mention any names). Chinese core, mediocre fabrication, probably not worth the money, or any more effective than the Mishimoto...

Originally Posted by Gunney_07 View Post
maybe a turbo blanket, improved air dam, larger/faster electric fans
I'm still not sure how a turbo blanket helps except getting engine bay temps down. By isolating the turbo, and preventing it to "radiate" some of its heat out, won't it just get hotter, heating up the oil and coolant going through it even more??
I hadn't considered beefier fans. That actually does sound like a good option. Question is what's available that will fit without modification?

Originally Posted by JapEatr View Post
Im doing one on mine. Welded -10 fittings to the stock oil cooler and routed to a ford oil cooler
I'd be interested to know more about this. Do you have components picked out yet? Is there an easier way besides welding? Is it possible to remove the stock oil cooler and attach lines going to the new one?
colodude18 is offline
Old 09-06-2014, 03:44 PM
  #9
Senior Member
iTrader: (2)

Join Date: 07-04-10
Location: Carol Stream, IL
Posts: 3,283
Thanked 62 Times in 50 Posts
You want to get the biggest possible lines and cooler you can fit.

My idea and a few guys have done the original lsj piece but is to weld -10 or -12 lines and run a a short height long length and wide with cooler with 2 mini fans and a thermostat. You need to find a high pressure point in front of the car to force hair through. Some ducting would be beneficial too.
Omiotek is offline
Old 09-06-2014, 04:14 PM
  #10
South Central *********
iTrader: (9)

Join Date: 05-14-05
Location: Texas
Posts: 6,066
Thanked 19 Times in 17 Posts
Originally Posted by colodude18 View Post
I was also looking at a Derale, with a built in fan.



I had the ZZP radiator on my list of potential cooling mods, until <someone with authority on racing these cars> advised against it (don't wanna mention any names). Chinese core, mediocre fabrication, probably not worth the money, or any more effective than the Mishimoto...



I'm still not sure how a turbo blanket helps except getting engine bay temps down. By isolating the turbo, and preventing it to "radiate" some of its heat out, won't it just get hotter, heating up the oil and coolant going through it even more??
I hadn't considered beefier fans. That actually does sound like a good option. Question is what's available that will fit without modification?



I'd be interested to know more about this. Do you have components picked out yet? Is there an easier way besides welding? Is it possible to remove the stock oil cooler and attach lines going to the new one?
Yes I have all the components... I have pics on FB and ARM Performance page'


I'll try to post some up here shortly
JapEatr is offline
Old 09-06-2014, 06:20 PM
  #11
Senior Member
Thread Starter
iTrader: (4)

Join Date: 01-12-10
Location: Greater Denver Area, Colorado
Posts: 2,391
Thanked 105 Times in 84 Posts
Originally Posted by Omiotek View Post
You want to get the biggest possible lines and cooler you can fit.

My idea and a few guys have done the original lsj piece but is to weld -10 or -12 lines and run a a short height long length and wide with cooler with 2 mini fans and a thermostat. You need to find a high pressure point in front of the car to force hair through. Some ducting would be beneficial too.
Well the good news is that with my AC delete, there's plenty of room in front of my radiator!
I was looking at this 15660 but it comes with only -8an lines... Would two of these in series be too crazy? lol


Originally Posted by JapEatr View Post
Yes I have all the components... I have pics on FB and ARM Performance page'
I'll try to post some up here shortly
Yeah that'd be awesome man! Or friend me on fb ==> Adrian van Ineveld
colodude18 is offline
Old 09-06-2014, 09:11 PM
  #12
Senior Member
iTrader: (2)

Join Date: 07-04-10
Location: Carol Stream, IL
Posts: 3,283
Thanked 62 Times in 50 Posts
You don't need to. Track cars don't even run 2. You can easily by an adapter from the cooler threads to -10.
Omiotek is offline
Old 09-06-2014, 09:35 PM
  #13
Senior Member
iTrader: (6)

Join Date: 07-19-10
Location: Denver, Colorado
Posts: 22,145
Thanked 369 Times in 327 Posts
Originally Posted by Omiotek View Post
You don't need to. Track cars don't even run 2. You can easily by an adapter from the cooler threads to -10.
This.

Adrian if you need help with the install let me know
ECaulk is offline
Old 09-06-2014, 09:38 PM
  #14
South Central *********
iTrader: (9)

Join Date: 05-14-05
Location: Texas
Posts: 6,066
Thanked 19 Times in 17 Posts
There is no such thing as cooler threads
JapEatr is offline
Old 09-06-2014, 10:43 PM
  #15
Senior Member
Thread Starter
iTrader: (4)

Join Date: 01-12-10
Location: Greater Denver Area, Colorado
Posts: 2,391
Thanked 105 Times in 84 Posts
I wasn't really serious on running 2 of them lol
Thanks for all the input guys!
Eric I will probably need help with the install, unless I bring it in to Trent.
It'll be a while though. This semester's tuition for Renee is due next week
If it wasn't for that I could buy Cmiller's engine and have a couple grand left for cooling mods lol
colodude18 is offline
Old 09-07-2014, 12:32 AM
  #16
Senior Member
iTrader: (2)

Join Date: 07-04-10
Location: Carol Stream, IL
Posts: 3,283
Thanked 62 Times in 50 Posts
Originally Posted by JapEatr View Post
There is no such thing as cooler threads
Yes I know.... But there are physical threads on the cooler itself and since I do not know what derale uses how am I suppose to specify to the guy what they are? What I'd they are an thread instead of npt or vice versa? Some company's is an going into the cooler and some use none and have permanently fixed brings and some use npt. I'm nott about to tell the guy fault information.

Best place for the cooler is in the upper grill or between the subframe and oil pan mounted parallel to the ground
Omiotek is offline
Old 09-07-2014, 09:38 AM
  #17
Super Moderator
iTrader: (3)

mrbelvedere's Avatar

Join Date: 12-04-05
Location: KY
Posts: 8,123
Thanked 45 Times in 39 Posts
I run an external setup on my lsj I can post a pick later it works very well

you will need to make an adapter plate to weld 2 -10 (-12 to big)male an fittings to I have an idea on that since the lnf dose not run an adapted oil cooler I just need one to tear up. and as for the cooler you don't need a super huge cooler with a fan and such a simple 10x11 or so will work. my car does not like to warm up on cool nights if you decide to try a bigger radiator I would give griffen a call and have them build a larger one the mishimoto radiators are not that good from what ive been told

I built a setup for my friend he runs scca with an lsj his temps were 230 to 250(sometimes a little higher) at the end of the race he was running a big radiator waterless coolant and getting the oil of the cooling system allowed him to run a stock radiator and see temps at 190 by the end of the race
mrbelvedere is offline
Old 09-07-2014, 10:55 AM
  #18
Senior Member
iTrader: (6)

Join Date: 07-19-10
Location: Denver, Colorado
Posts: 22,145
Thanked 369 Times in 327 Posts
Originally Posted by colodude18 View Post
I wasn't really serious on running 2 of them lol
Thanks for all the input guys!
Eric I will probably need help with the install, unless I bring it in to Trent.
It'll be a while though. This semester's tuition for Renee is due next week
If it wasn't for that I could buy Cmiller's engine and have a couple grand left for cooling mods lol
It can be a winter project
ECaulk is offline
Old 09-07-2014, 11:15 AM
  #19
Senior Member
iTrader: (2)

Join Date: 07-04-10
Location: Carol Stream, IL
Posts: 3,283
Thanked 62 Times in 50 Posts
Mr b your also on e85. Cool night starts suck anyways lol. You only run a fan with a thermostat or no fan at all. You really would only need a fan in extreme track temp conditions. Mishimoto is not good. The fact they kept the core size the same is a joke. Call bell, griffen, Howe, or Ron Davis for a good radiator. I know ron Davis has built one before. I intend to build my own dual or triple pass.
Omiotek is offline
Old 09-07-2014, 12:35 PM
  #20
Senior Member
Thread Starter
iTrader: (4)

Join Date: 01-12-10
Location: Greater Denver Area, Colorado
Posts: 2,391
Thanked 105 Times in 84 Posts
Originally Posted by Omiotek View Post
Best place for the cooler is in the upper grill or between the subframe and oil pan mounted parallel to the ground
Good point. Although I have plenty of room in front of my radiator with the AC condenser out of the way, I did have some concerns about feeding the hot oil cooler exit-air into the radiator...

Originally Posted by mrbelvedere View Post
I run an external setup on my lsj I can post a pick later it works very well
you will need to make an adapter plate to weld 2 -10 (-12 to big)male an fittings to I have an idea on that since the lnf dose not run an adapted oil cooler I just need one to tear up. and as for the cooler you don't need a super huge cooler with a fan and such a simple 10x11 or so will work. my car does not like to warm up on cool nights if you decide to try a bigger radiator I would give griffen a call and have them build a larger one the mishimoto radiators are not that good from what ive been told

I built a setup for my friend he runs scca with an lsj his temps were 230 to 250(sometimes a little higher) at the end of the race he was running a big radiator waterless coolant and getting the oil of the cooling system allowed him to run a stock radiator and see temps at 190 by the end of the race
Thanks Mr. B, a picture would be very helpful. As for cool nights, this is basically a dedicated track / weekend fun car so I can avoid starting her up when temps are too cold. I have no problem with properly warming her up before driving off.
That's impressive to go from 250 to 190. Are you saying only an oil cooler or only a larger radiator would be enough? I'd rather go big than get a solution that turns out to be inadequate...

Originally Posted by ECaulk View Post
It can be a winter project
Yes Eric it will definitely be a winter project

Originally Posted by Omiotek View Post
Mr b your also on e85. Cool night starts suck anyways lol. You only run a fan with a thermostat or no fan at all. You really would only need a fan in extreme track temp conditions. Mishimoto is not good. The fact they kept the core size the same is a joke. Call bell, griffen, Howe, or Ron Davis for a good radiator. I know ron Davis has built one before. I intend to build my own dual or triple pass.
Thanks for the names of all those custom radiator manufacturers. I'll get an idea of cost from each one. I'd love to see what a bigger radiator can do for me.
colodude18 is offline
Old 09-07-2014, 12:57 PM
  #21
Super Moderator
iTrader: (3)

mrbelvedere's Avatar

Join Date: 12-04-05
Location: KY
Posts: 8,123
Thanked 45 Times in 39 Posts

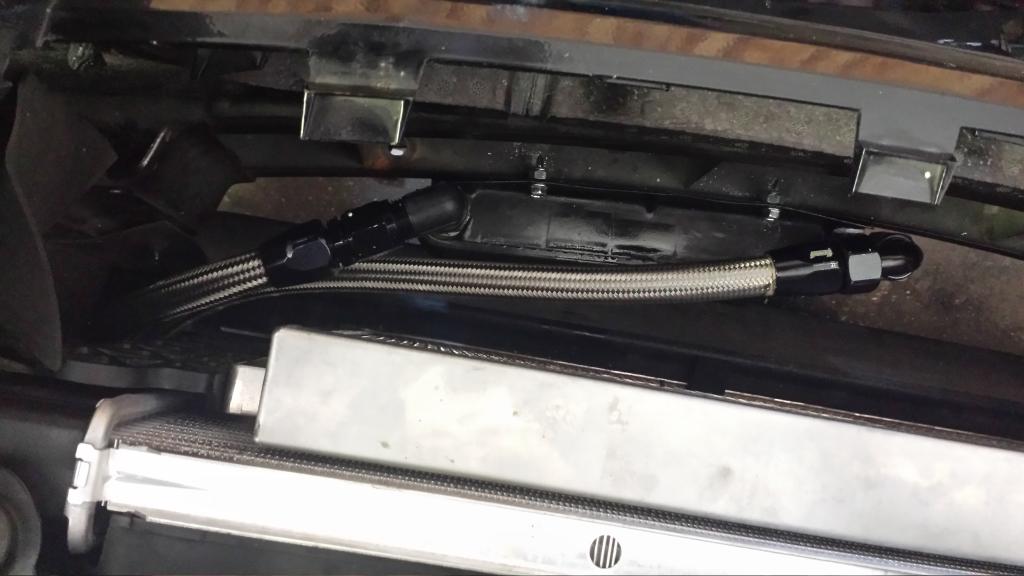

Name:  20140605_125339_zpswxqkxtvo.jpg
Views: 233
Size:  52.9 KB

Name:  20140605_125315_zpsauhzby8g.jpg
Views: 225
Size:  60.5 KB
mrbelvedere is offline
Old 09-07-2014, 12:59 PM
  #22
Super Moderator
iTrader: (3)

mrbelvedere's Avatar

Join Date: 12-04-05
Location: KY
Posts: 8,123
Thanked 45 Times in 39 Posts
Originally Posted by Omiotek View Post
Mr b your also on e85. Cool night starts suck anyways lol. You only run a fan with a thermostat or no fan at all. You really would only need a fan in extreme track temp conditions. Mishimoto is not good. The fact they kept the core size the same is a joke. Call bell, griffen, Howe, or Ron Davis for a good radiator. I know ron Davis has built one before. I intend to build my own dual or triple pass.
it was the same way on gas I don't run a thermostat on my oil cooler either don't want it
mrbelvedere is offline
Old 10-12-2014, 12:47 PM
  #23
Super Moderator
iTrader: (3)

mrbelvedere's Avatar

Join Date: 12-04-05
Location: KY
Posts: 8,123
Thanked 45 Times in 39 Posts
the lnf from what I can find does not run a thermostat in the oil cooling system here is the plate to run an external cooler on an lnf

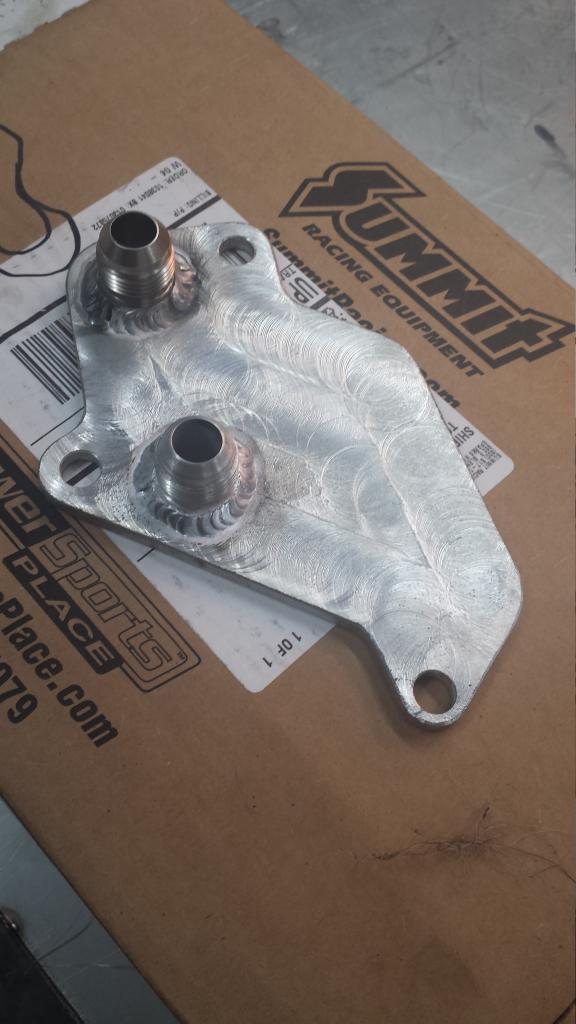

Name:  20141011_120246_zpsvopzx6x5.jpg
Views: 298
Size:  64.4 KB
mrbelvedere is offline
Old 10-12-2014, 01:39 PM
  #24
South Central *********
iTrader: (9)

Join Date: 05-14-05
Location: Texas
Posts: 6,066
Thanked 19 Times in 17 Posts
Hey i have one of those haha
JapEatr is offline
Old 10-12-2014, 01:40 PM
  #25
Senior Member
iTrader: (6)

Join Date: 07-19-10
Location: Denver, Colorado
Posts: 22,145
Thanked 369 Times in 327 Posts
Originally Posted by mrbelvedere View Post
the lnf from what I can find does not run a thermostat in the oil cooling system here is the plate to run an external cooler on an lnf

Do you machine these? Those look great.
ECaulk is offline

Thread Tools
Search this Thread
Quick Reply: Aftermarket front mount oil cooler


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2018 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
