New here and need some help

I recently purchased a HHR SS. I am in the process of replacing the head gasket. Almost done but I have a ground wire that lost the tag I marked it with and I don't know where it should hook up to. It is in the area of the high pressure fuel pump. It could connect under the intake manifold as well.

The end of the wire connects to other ground wires in the front driver's side of the engine compartment.

BTW - tons of great information on this forum - I have gained knowledge from many posts.

I attached 3 photos showing the connections

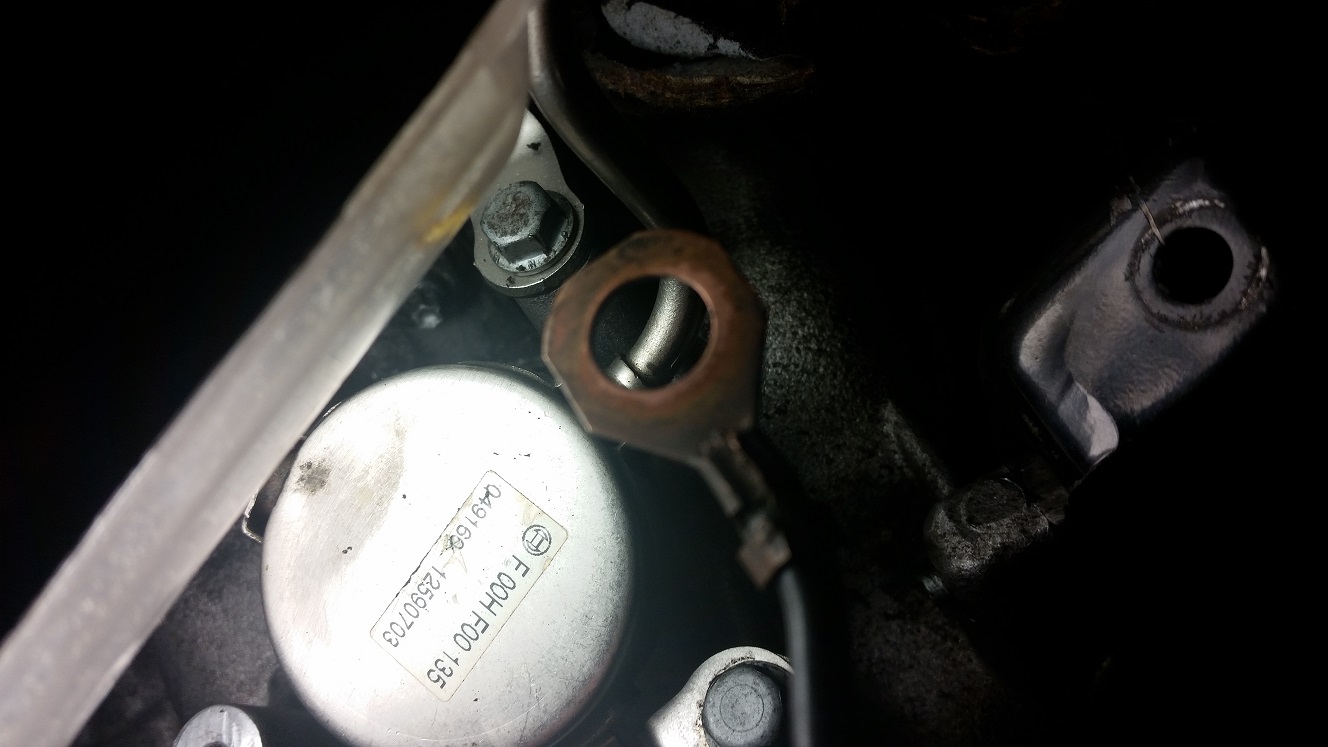

1. showing a closeup of the connection I need to find a home for.

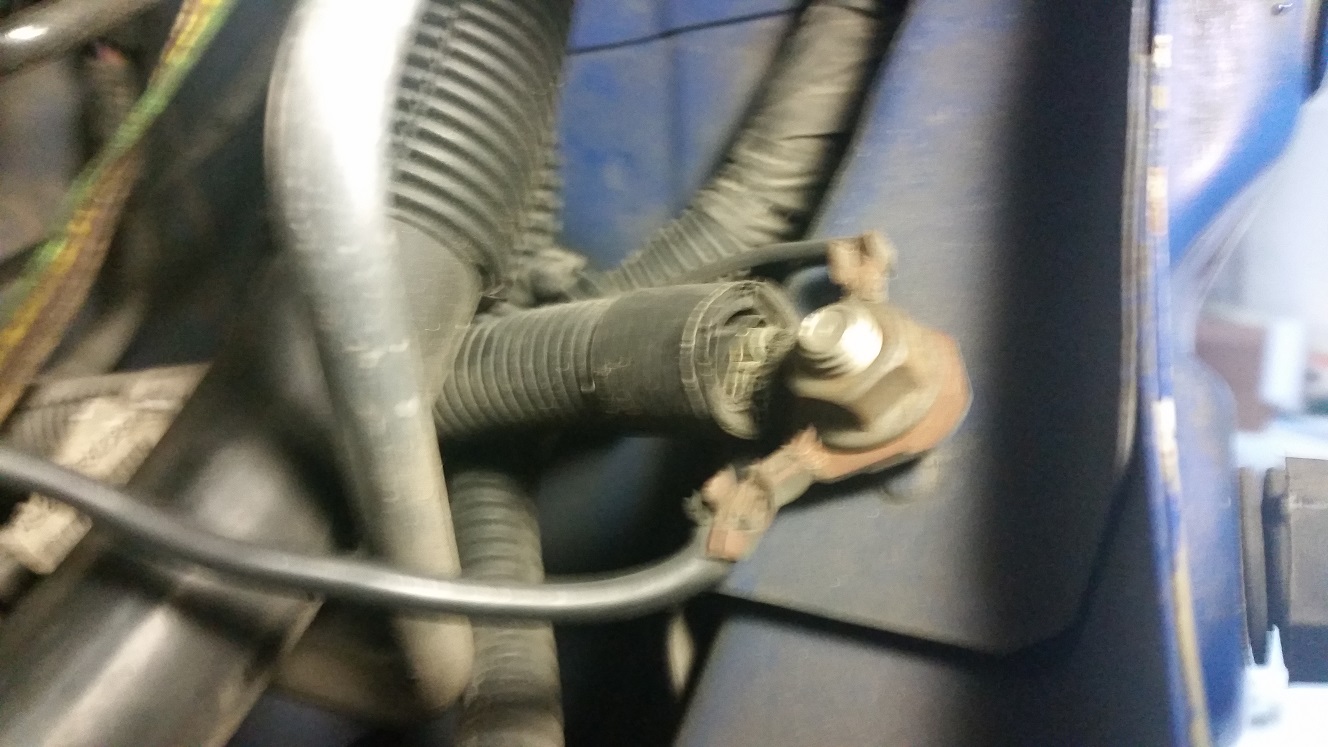

2. showing where the wire connects

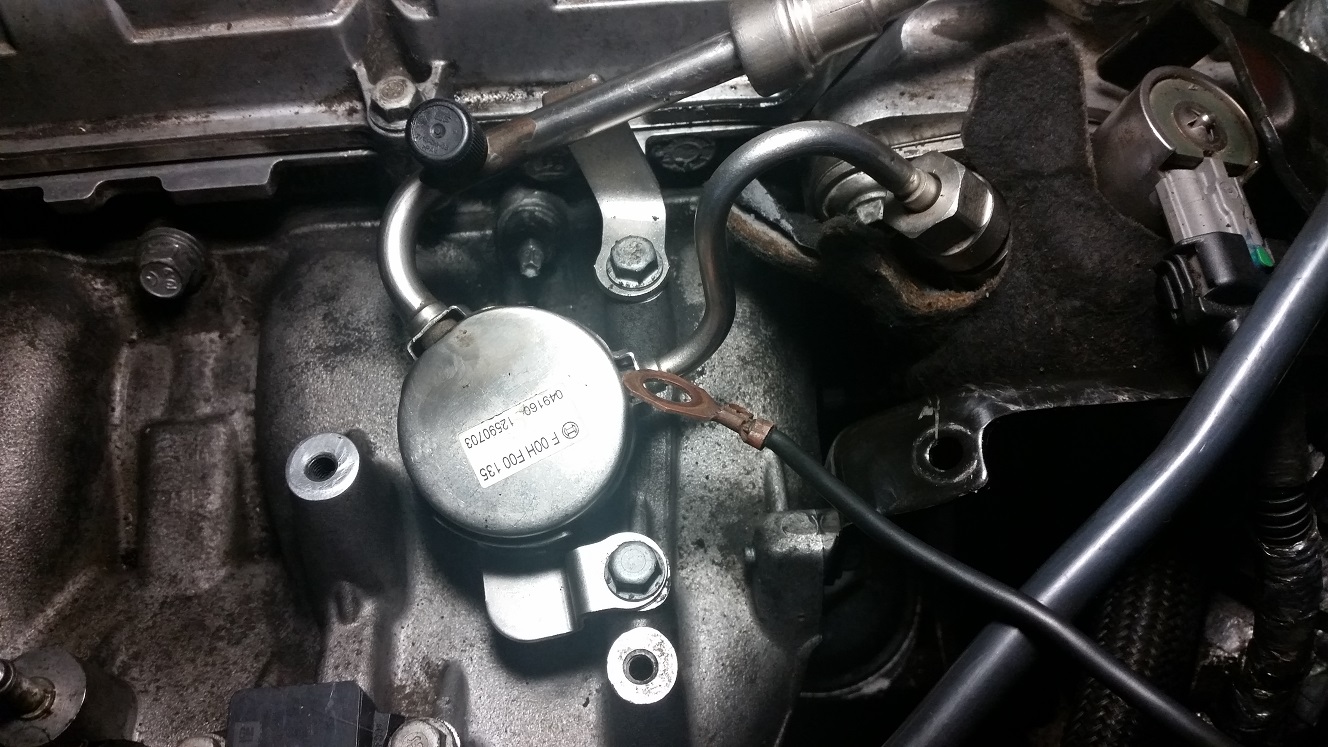

3. the general location of the wire
Attached Thumbnails
wire1.jpg   wire2.jpg   wire3.jpg
pearljamfan is offline   Reply With Quote
Old 03-13-2018, 10:31 AM   #2
Senior Member

Kolt's Avatar

Join Date: 04-19-09
Location: Jackson, TN
Posts: 2,299
Thanked 87 Times in 77 Posts
what year and ill get a ground location diagram, vin works best if you can get that
Kolt is offline   Reply With Quote
Old 03-13-2018, 10:39 AM   #3
New Member
Thread Starter

Join Date: 03-12-18
Location: Baldwin, WI
Posts: 6
Thanked 0 Times in 0 Posts
It is a 2009 HHR

3GNCA63X59S500898


I do have a repair manual with wiring diagrams, I can certainly look through and see if I can find the connection. *slapping my head for not thinking of that*
pearljamfan is offline   Reply With Quote
Old 03-13-2018, 10:48 AM   #4
Senior Member

Kolt's Avatar

Join Date: 04-19-09
Location: Jackson, TN
Posts: 2,299
Thanked 87 Times in 77 Posts


there is four grounds, looking to see if there is anymore, one under the alternator and another under the oil cooler on the trans. the two top right is by the fuse block

Last edited by Kolt; 03-13-2018 at 10:53 AM.
Kolt is offline   Reply With Quote
The Following User Says Thank You to Kolt For This Useful Post:
pearljamfan (03-13-2018)
Old 03-13-2018, 10:49 AM   #5
Senior Member

Kolt's Avatar

Join Date: 04-19-09
Location: Jackson, TN
Posts: 2,299
Thanked 87 Times in 77 Posts

heres one on the backside attached to the corner of the cyl head
Kolt is offline   Reply With Quote
Old 03-13-2018, 10:51 AM   #6
Senior Member

Kolt's Avatar

Join Date: 04-19-09
Location: Jackson, TN
Posts: 2,299
Thanked 87 Times in 77 Posts

there is another view of the one under the cooler(#2) and alternator(#4).
Kolt is offline   Reply With Quote
Old 03-13-2018, 10:53 AM   #7
Senior Member

Kolt's Avatar

Join Date: 04-19-09
Location: Jackson, TN
Posts: 2,299
Thanked 87 Times in 77 Posts

last one I can find that goes behind the left headlamp on the upper radiator support bar
Hope those help
Kolt is offline   Reply With Quote
Old 03-13-2018, 11:41 AM   #8
New Member
Thread Starter

Join Date: 03-12-18
Location: Baldwin, WI
Posts: 6
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Kolt View Post


there is four grounds, looking to see if there is anymore, one under the alternator and another under the oil cooler on the trans. the two top right is by the fuse block




This image is perfect

My lost connection is #3

Many thanks
