--||The Official Headlight and Taillight Thread||--

Appearance Body Kits, Hoods, Wheels, Spoilers, Interiors

--||The Official Headlight and Taillight Thread||--

Old 02-07-2010, 10:21 AM
  #1
AWD > FWD
Thread Starter
iTrader: (2)

TommyP's Avatar

Join Date: 04-19-09
Location: Youngstown, Ohio
Posts: 11,122
Thanks: 0
Thanked 1 Time in 1 Post
--||The Official Headlight and Taillight Thread||--

The old headlight and tail light thread was going out of date, and all the pictures are missing, so it's time for a new one. If anybody has a problem with me using a picture of their car as an example let me know and I'll take it down.

First of all, all cobalt head lights fit all cobalts and g5s

1st generation projectors


These use H1 bulbs for both the high and low beams

2nd Generation Projectors


These use H7 bulbs for the low beams and H1 bulbs for the high beams

3rd Generation Projectors


These use H1 bulbs for the high and low beams

4th Generation Projectors


These use H7 bulbs for both the high and low beams.


Blacked out stockers

Stock headlight bulbs are 9007
On the stock lights, the 05-06s have amber turn signal reflectors. On the 07+, they're chrome. Also, if you have an 05-06, your parking lights are your DRLs. If you have an 07+ your headlights are your DRLs. So if you put hids in an 07+, pull the DRL fuse to avoid problems. To repeat myself because some of you out there on .net don't read through all of this, if you have an 05-06 Cobalt, your parking lights are your Daytime Running Lights. If you have an 07-10, your low beams are your daytime running lights. The type of headlight you have does not matter

If you get LED turn signal bulbs, a resistor such as these will be required. Switchback Leds are awesome too. They are white when driving, then switch to amber for the turn signals


I got mine on 3bspec.com. They are two types of them. Type 1 has it set up so when you turn your turn signals on, they flash between white and amber. Type two turns off the white and just flashes amber, then turns the white back on when you shut off the turn signal. Here's two videos as examples
Type 1
Type 2
Type 1 can be found on 3bspec.com here
Type 2 can be found on v-leds.com here
Both can be found on vleds but remember that 3bspec is one of our supporting vendors. You will need to buy these load resistors to keep them from hyperflashing.

The best head lights possible though, are retrofits. These are OEM projectors that are fitted in from BMWs, Acuras, G35s, etc. Currently, we have 2 vendors that sell retrofits, Streetracinazian, and buyhids.com. Both sell complete retrofit sets, and buyhids also sells do it yourself kits. They both feature the Morimoto Mini H1 projector, which is a fantastic projector. This is definitely the way to go on a good lighting setup.

If you are buying a retrofit kit, I HIGHLY recommend spending the extra money on the Morimoto HID kit, instead of the generic cheaper one. The Morimoto kit is designed to work with the Mini H1 projectors which both vendors use, and are of a far superior, nearly OEM quality. 95% of the issues with retrofits are due to either incorrect user installation, or not buying the Morimoto hid kit.

Our fog lights use H11 Bulbs

2 door coupe led tails




These come in a variety of black/red/chrome mixes


These come in red too



4 door sedan tails


These come in a variety of black/red/chrome mixes


^^ These come in chrome too

To help clear up confusion that often pops up around here, the sedan tail lights are not the same as the G5 coupe tail lights, and are not interchangeable.


All of these lights can be found from various supporting members. eBay will be the cheapest place for all of these lights, but our vendors are the most reliable. The quality for these lights is the same no matter where you go, they all come from the same respective factory, as in all the 1st gens are made in the same spot, etc.

Vendors such as:
Modern Performance
PFYC
3Bspec
Cobalt-Addiction
Turbo Tech Racing
ZZP
all sell at least some of these lights. If any other vendors sell them let me know and I'll add them to the list, these are just the ones I know off the top of my head. all of these lights can easily be found on ebay

Here are some helpful how to's
How to paint your headlights
How to paint head lights with CLEAR corners (Missing pics)
LED 3rd Brake light
Method 1
Method 2
3rd brake light relocation retrofit
How to Tint Your lights
How to replace a burnt out halo
How to wire halos
3rd Gen anti glare mod(pictures are missing, but hopefully you'll get the idea)
How to swap to CCFL halos
How to remove + tint Sedan tails
How to make retrofit headlights
"Ultimate High Beam Mod"
How to remove your headlights
"Skyline Tail light mod"
How to change fog light bulbs
How-To: Replace a Burnt Out Halo Electrical How-To: Replace a Burnt Out Halo - Cobalt SS Network

Let me know if I missed something. Also, if anyone has a request for pics of certain lights on a certain color car, post it and I'll do my best to find one.

If anyone has any questions feel free to post them!

Last edited by TommyP; 02-26-2012 at 10:41 PM. Reason: Automerged Doublepost
TommyP is offline
Old 02-07-2010, 11:39 AM
  #2
Senior Member
iTrader: (1)

Mindrot's Avatar

Join Date: 02-16-09
Location: Fredericksburg, VA
Posts: 3,207
Thanks: 0
Thanked 0 Times in 0 Posts
Add this: Ebay

Mindrot is offline
Old 02-07-2010, 12:01 PM
  #3
Site Founder

JonyyB's Avatar

Join Date: 03-17-04
Location: NE OH Near Cleveland
Posts: 7,650
Thanks: 0
Thanked 0 Times in 0 Posts
add something on trunk lid lights like:
https://www.cobaltss.net/forums/show...hlight=skyline

A vendor needs to make these for us, would sell like hotcakes

Also, vette lights, but we need a good step by step how to on this:
https://www.cobaltss.net/forums/show...1&postcount=44 (also not legal unless you add 1 reverse light in the bumper grill or get a g5 bumper)
JonyyB is offline
Old 02-07-2010, 12:05 PM
  #4
Senior Member

DarkCobalt13's Avatar

Join Date: 04-01-05
Location: Indianapolis, IN
Posts: 1,531
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by JonyyB View Post
add something on trunk lid lights like:
https://www.cobaltss.net/forums/show...hlight=skyline

A vendor needs to make these for us, would sell like hotcakes
I'd buy them!
DarkCobalt13 is offline
Old 02-07-2010, 12:24 PM
  #5
AWD > FWD
Thread Starter
iTrader: (2)

TommyP's Avatar

Join Date: 04-19-09
Location: Youngstown, Ohio
Posts: 11,122
Thanks: 0
Thanked 1 Time in 1 Post
^^^ x2! Those plus

these tails together tinted would sell like crazy!
TommyP is offline
Old 02-07-2010, 12:25 PM
  #6
Senior Member
iTrader: (16)

iboost's Avatar

Join Date: 12-22-08
Location: Rochester, New York
Posts: 8,359
Thanks: 0
Thanked 1 Time in 1 Post
how bout retros?
iboost is offline
Old 02-07-2010, 12:28 PM
  #7
AWD > FWD
Thread Starter
iTrader: (2)

TommyP's Avatar

Join Date: 04-19-09
Location: Youngstown, Ohio
Posts: 11,122
Thanks: 0
Thanked 1 Time in 1 Post
I was kind of leaving those out since the possibilities with retros are endless, that's kind of why I put the how to in. I wanted to limit this to what can easily found and installed from vendors. Maybe I'll write a little about it though.
TommyP is offline
Old 02-07-2010, 12:29 PM
  #8
Site Founder

JonyyB's Avatar

Join Date: 03-17-04
Location: NE OH Near Cleveland
Posts: 7,650
Thanks: 0
Thanked 0 Times in 0 Posts
factory style w black housing

Also, 05-06 headlights have the amber over the turn signals, 07+ Don’t
JonyyB is offline
Old 02-07-2010, 02:26 PM
  #9
Senior Member
iTrader: (16)

iboost's Avatar

Join Date: 12-22-08
Location: Rochester, New York
Posts: 8,359
Thanks: 0
Thanked 1 Time in 1 Post
Originally Posted by Tommyp2010 View Post
I was kind of leaving those out since the possibilities with retros are endless, that's kind of why I put the how to in. I wanted to limit this to what can easily found and installed from vendors. Maybe I'll write a little about it though.
Makes sense...good thread btw
iboost is offline
Old 02-11-2010, 10:47 AM
  #10
Senior Member

06C0BALT's Avatar

Join Date: 10-07-09
Location: Michigan
Posts: 4,103
Thanks: 0
Thanked 0 Times in 0 Posts



Half-assed pic. I'll get a better one later. I have stock black housing lights with 6k HIDS
06C0BALT is offline
Old 02-11-2010, 11:53 AM
  #11
Senior Member
iTrader: (4)

06G85's Avatar

Join Date: 05-19-09
Location: Severn, Maryland
Posts: 4,010
Thanks: 0
Thanked 0 Times in 0 Posts
I bought the smoked LED tails off ebay. They are GREAT! THe pictures on ebay of them they look dark red. They actually have a clear smoked look. LED's are BRIGHT! I got these from k2motor. I searched Cobalt smoked LED tail. The description underneath said it was a dark red lense, but they came like this.






Feel free to use my pictures anywhere!!!

Last edited by 06G85; 08-03-2010 at 08:58 AM.
06G85 is offline
Old 02-11-2010, 01:29 PM
  #12
Senior Member

06C0BALT's Avatar

Join Date: 10-07-09
Location: Michigan
Posts: 4,103
Thanks: 0
Thanked 0 Times in 0 Posts
^i forget do LS and SS fit the same tail lights?
06C0BALT is offline
Old 02-11-2010, 01:39 PM
  #13
Senior Member

Rissa's Avatar

Join Date: 05-06-08
Location: So Cal
Posts: 24,621
Thanks: 0
Thanked 0 Times in 0 Posts
Yes.
Rissa is offline
Old 02-11-2010, 01:52 PM
  #14
Senior Member

06C0BALT's Avatar

Join Date: 10-07-09
Location: Michigan
Posts: 4,103
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks Rissa =)
06C0BALT is offline
Old 02-11-2010, 01:55 PM
  #15
Senior Member

Rissa's Avatar

Join Date: 05-06-08
Location: So Cal
Posts: 24,621
Thanks: 0
Thanked 0 Times in 0 Posts
No problemo.
Rissa is offline
Old 02-11-2010, 03:23 PM
  #16
Senior Member
iTrader: (4)

tom.g's Avatar

Join Date: 03-11-09
Location: Alberta, Canada
Posts: 1,191
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by 06C0BALT View Post



Half-assed pic. I'll get a better one later. I have stock black housing lights with 6k HIDS
Did you paint the bottom ridged portion of your headlight housing? I'd love to see an up clsoe pic of your housing if you have one.
tom.g is offline
Old 02-11-2010, 03:45 PM
  #17
Senior Member

06C0BALT's Avatar

Join Date: 10-07-09
Location: Michigan
Posts: 4,103
Thanks: 0
Thanked 0 Times in 0 Posts


close up on the car.





before they were installed.
06C0BALT is offline
Old 02-11-2010, 07:44 PM
  #18
Senior Member
iTrader: (4)

tom.g's Avatar

Join Date: 03-11-09
Location: Alberta, Canada
Posts: 1,191
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by 06C0BALT View Post


close up on the car.





before they were installed.
Wicked thank you for those pics? How is the glare after painting that ridged portion black? I've been debating on painting that portion for the last week and I just can't make up my mind.
tom.g is offline
Old 02-11-2010, 07:46 PM
  #19
Senior Member

Rissa's Avatar

Join Date: 05-06-08
Location: So Cal
Posts: 24,621
Thanks: 0
Thanked 0 Times in 0 Posts
What ridged portion are you talking about?
Rissa is offline
Old 02-11-2010, 09:47 PM
  #20
Senior Member
iTrader: (4)

06G85's Avatar

Join Date: 05-19-09
Location: Severn, Maryland
Posts: 4,010
Thanks: 0
Thanked 0 Times in 0 Posts
Rissa, I think tomg is talking about the inner bottom part of the headlight reflector. Like how mine are painted..

06G85 is offline
Old 02-11-2010, 11:37 PM
  #21
Senior Member
iTrader: (4)

tom.g's Avatar

Join Date: 03-11-09
Location: Alberta, Canada
Posts: 1,191
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by 06G85 View Post
Rissa, I think tomg is talking about the inner bottom part of the headlight reflector. Like how mine are painted..

Exactly

If the ridged portion is un-painted it looks like so

tom.g is offline
Old 02-11-2010, 11:44 PM
  #22
I'm too JDM for you
iTrader: (7)

BLAZIN07SS's Avatar

Join Date: 06-05-07
Location: Miami, Florida
Posts: 16,370
Thanks: 0
Thanked 0 Times in 0 Posts
oh wow everyones headlights in this thread are black. what a surprise

you know what? BAM!!!!











BLAZIN07SS is offline
Old 02-11-2010, 11:46 PM
  #23
Haz l33t wheelz.

ls1fbody's Avatar

Join Date: 09-14-07
Location: Costa Mesa CA
Posts: 18,891
Thanks: 0
Thanked 1 Time in 1 Post
Originally Posted by 06G85 View Post
I bought the smoked LED tails off ebay. They are GREAT! THe pictures on ebay of them they look dark red. They actually have a clear smoked look. LED's are BRIGHT!






Feel free to use my pictures anywhere!!!
Not bad... I don't know how i feel about the LED's though.

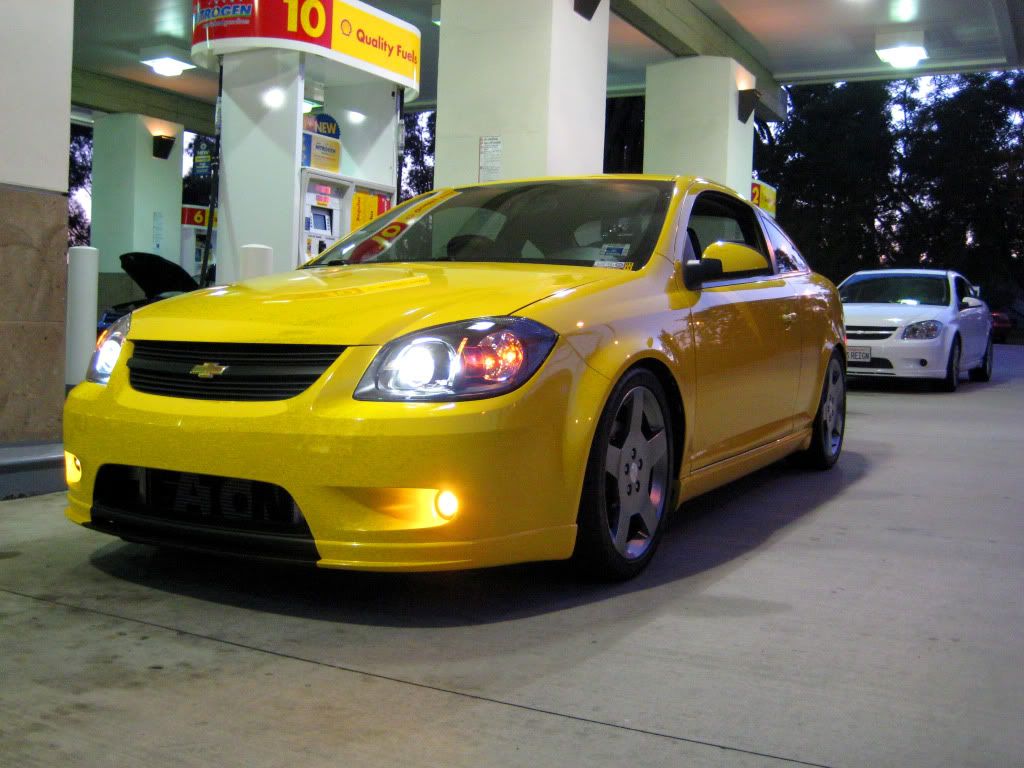

May i submit my headlights for the retrofit category?


ls1fbody is offline
Old 02-12-2010, 01:44 AM
  #24
Senior Member
iTrader: (1)

Join Date: 04-19-08
Location: Drayton Valley AB
Posts: 4,357
Thanks: 0
Thanked 0 Times in 0 Posts
retros by blownss06
e55's





they are brighter than photos represent

i tried to upload a close up of them but i just got wicked glare...

Last edited by thedude411; 02-19-2010 at 07:10 AM.
thedude411 is offline
Old 02-12-2010, 02:40 AM
  #25
Senior Member

Join Date: 09-25-09
Location: Memphis, TN
Posts: 2,756
Thanks: 0
Thanked 0 Times in 0 Posts
Awesome info in this thread.
IdreamofYenko is offline
